Brand: Actek

ACTEK AK46104 SWIVEL HOIST RING 5/16-18 800 LBS 0.54IN THREAD PROJ. STANDARD U-BAR

SKU: AK-AK46104
MPN: AK46104

$89.19
Unit price per
Save $10.90

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

ACTEK AK46104 SWIVEL HOIST RING 5/16-18 800 LBS 0.54IN THREAD PROJ. STANDARD U-BAR. Thread Size: 5/16" - 18 Thread Length: 0.54 in Rated Load: 800 lbs U-bar Radius: 0.47 in U-bar Height: 1.32 in U-bar Diameter: 3/8 in Bushing Head Diameter: 0.85 in Swivel Angle: 360° Pivot Angle: 180° Safety Factor: 5:1 Torque: 7 ft-lbs Weight: .3 lbs Material: Alloy Steel Finish: Black Oxide per MIL Specification (Cadmium Plated Available) Replacement Screw P/N: 46144

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK46104 SWIVEL HOIST RING 5/16-18 800 LBS

Manufacturer: Actek Manufacturing & Engineering

Part Number: AK46104

Description: Standard U-Bar

Thread Size: 5/16" - 18

Thread Length: 0.54 in

Rated Load: 800 lbs

U-bar Radius: 0.47 in

U-bar Height: 1.32 in

U-bar Diameter: 3/8 in

Bushing Head Diameter: 0.85 in

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Torque: 7 ft-lbs

Weight: .3 lbs

Material: Alloy Steel

Finish: Black Oxide per MIL Specification (Cadmium Plated Available)

Replacement Screw P/N: 46144

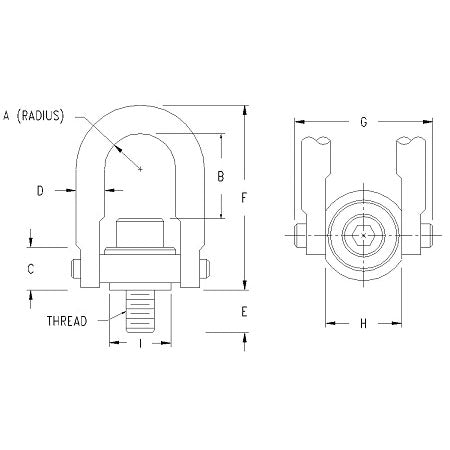

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK46104	5/16" - 18	0.54 in	800 lbs	0.47 in	1.32 in	0.71 in	3/8 in	2.72 in	1.91 in	1 in	7 ft-lbs	.3 lbs	46144	0.85 in
