Brand: Iscar

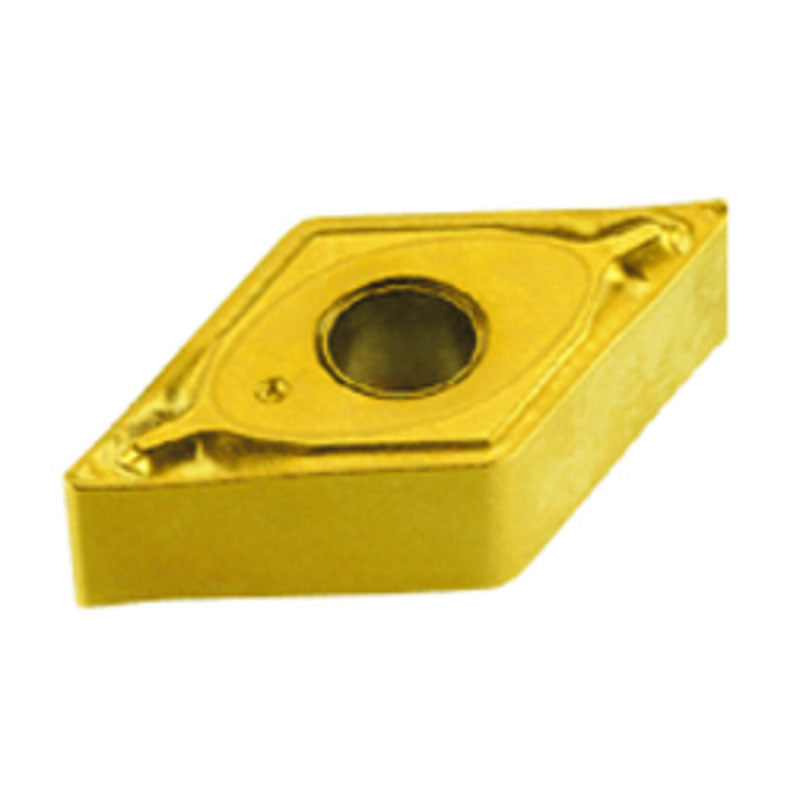

Iscar EH5503226 DNMG 331-NF IC520N
SKU: FTS-EH5503226
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5503226 DNMG 331-NF IC520NFull Description
Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | | Min D.O.C. | 0.031" |
Insert Style | DNMG | Depth of Cut Maximum (APMX) | 0.118" |
Corner Radius (RE) | 0.0157" | Min. Turning Feed (ft(min)) | 0.0027 "/rev |
Insert Size | 331 | Max. Turning Feed (ft(max)) | 0.0098 "/rev |
Cutting Edge Length (L) | 0.458" | Chip Breaker Type | NF |
Insert Thickness (S) | 0.187" | Measurement Type | Inch |
Inscribed Circle Diameter (IC) | 3/8" | Shape | 55° Rhombic |
Cutting Edge Material | Cermet | Series/List # | DNMG 331-NF |
Coating | TiCN+TiN | Body Material | Carbide |
Grade | IC520N |
