Brand: Parlec

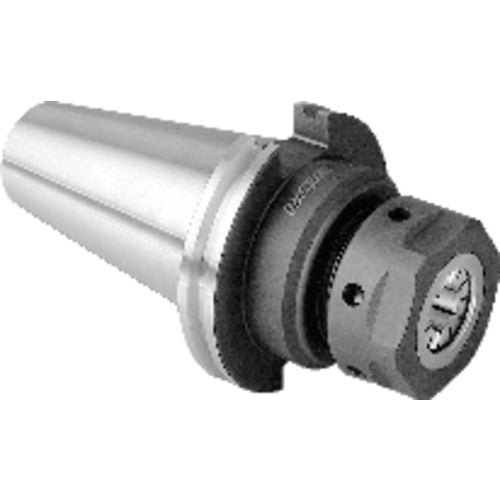

Parlec GM96C5015SC4 V-Flange Collet Chuck - CAT50 SH, 3.5" Projection

SKU: FTS-GM96C5015SC4
MPN: C50-15SC4

$369.92
Unit price per
Save $9.12

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Parlec C50-15SC4 V-Flange Collet Chuck - CAT50 SH, 3.5" Projection

Full Description

Shank Size (SS)	CAT50	Tool Type	Collet Chucks
Connection Size (CSI)	TG150	Style	TG150
Body Diameter (BD)	3.430"	Nose Length	3.43"
Protruding Length (LPR)	3-1/2"

• Constructed of alloy steel for long, durable service life • Hardened to RC 52–56 to avoid damaging collet chuck threads • Shiny taper with black oxide finish for the best combination of accuracy and durability • Collet seat taper T.I.R. .0002 • Collet face within .06 of nut face for maximum rigidity. • Collet can be removed with single hand. No tooling required and improved collet life • Precision ball bearing type collet races provide higher clamping forces • Through-spindle coolant capability • Parsymmetry design for high-speed operation • Plastic bumper protects spindle and holder during tool changes. Available on NMTB 40 and 50 tapers only. • Flange-entry coolant is the same as DIN Form B. Other sizes available on request
