Brand: Kipp
KIPP K0309.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=12, STEEL, COMP:BALL STEEL
SKU: KP-K0309.A1
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

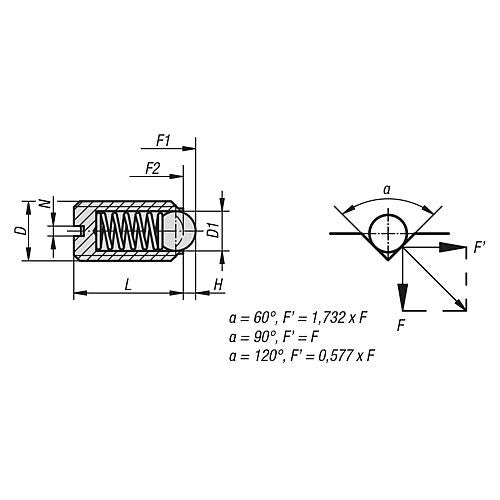

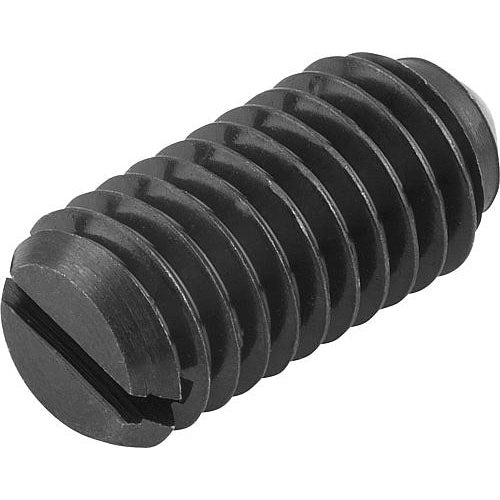

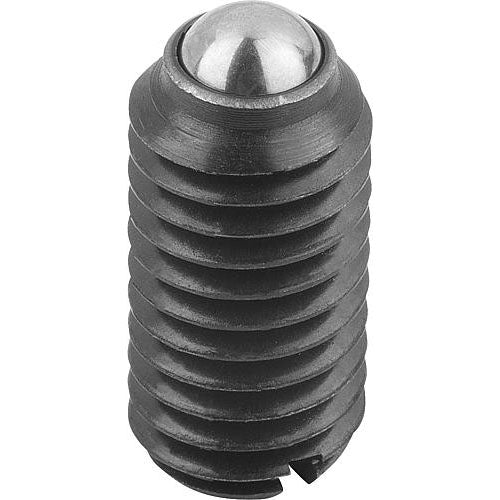

Spring Plungers ball style, slotted, steel, standard end pressure, inch
Material: body steel grade 5.8. Ball steel. Spring grade D steel wire. Type: Black oxidized. Ball hardened. Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
| Main Material: | Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Pin Style: | Ball |
| Carrier Style: | Slot |
| D: | 10-32 |
| D1: | 3 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 6 |
| Spring Force Final Pressure F2 Approx. N: | 11 |
| H: | 0.9 |
| L: | 12 |
| N: | 0.8 |
