Brand: Raptor Workholding Products

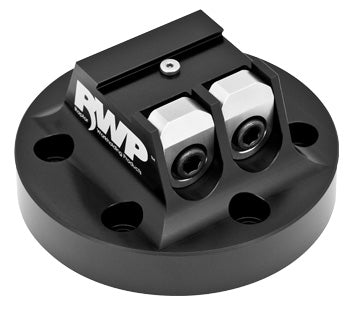

Raptor RWP-015 Aluminum 0.75" Dovetail Fixture 3.267" Dia. BC
SKU: RPT-RWP-015
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-015 Aluminum 0.75" Dovetail Fixture 3.267" Dia. BCFull Description
Dovetail Width in. | 0.750 |
---|---|
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 18 |
Max Workpiece Width in. | 5.75 |
Max Workpiece Length in. | 5.75 |
Max Workpiece Height in. | 5.75 |
Fixture Material | Aluminum |
Number of Clamps | 2 |
Clamp Part Number | RWP-CL302SQ |
Fixture Height in. | 2.000 |
This fixture is designed to connect directly to the HAAS HRT110 4-Axis Rotary Table, HAAS TR110 5-axis Trunnion Rotary Table for milling applications. It can also be utilized in other machines when connected with an adapter or riser. It offers superior clamping strength while allowing access to five sides of the workpiece.
The standard RWP-015 is manufactured from 7075 aluminum and anodized: Class 2 Type II.
The fixture clamps are made from 17-4 Stainless Steel.
Fixture and mounting screws combined weight: 1 lb / 14.70 oz.
Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
* Typical workpiece size dimensions (L x W x H): From: 2.00? x 1.75? x 0.50? To: 5.75? x 5.75? x 5.75?
** For use on the Haas TRT100, please refer to Haas indexer recommendation for platter weight restrictions not to exceed 15 lbs.
Watch video Haas TRT100 using RWP-015
TRT100 Alternative Recommended Fixture: RWP-038SS: stainless steel 0.75? dovetail fixture, shorter profile for additional Z!
Patented Design. Patent US8,672,310 B2
