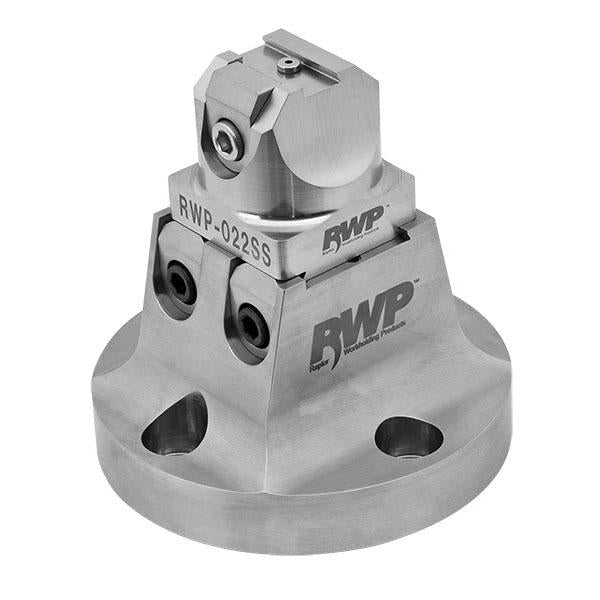

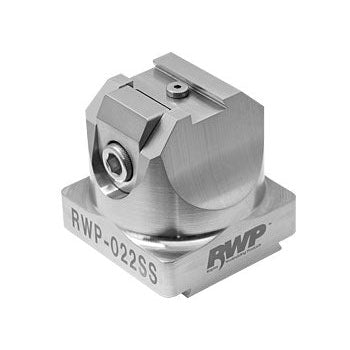

Raptor RWP-022SS Stainless Steel 0.50" Dovetail Fixture with 1.5" Dovetail Base

SKU: RPT-RWP-022SS
MPN: RWP-022SS

$1,193.14
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-022SS Stainless Steel 0.50" Dovetail Fixture with 1.5" Dovetail Base

Full Description

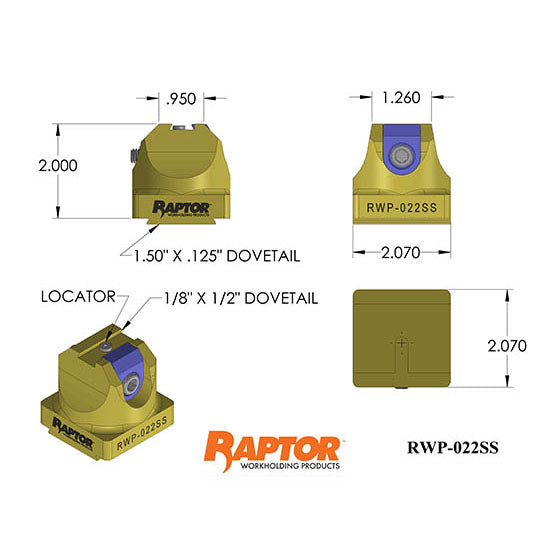

Dovetail Width in.	0.500
Dovetail Height in.	0.1250
Max Workpiece Weight lb.	6
Max Workpiece Width in.	3.25
Max Workpiece Length in.	3.25
Max Workpiece Height in.	3.25
Fixture Material	Stainless Steel
Number of Clamps	1
Clamp Part Number	RWP-CL306SQ
Fixture Height in.	2.000

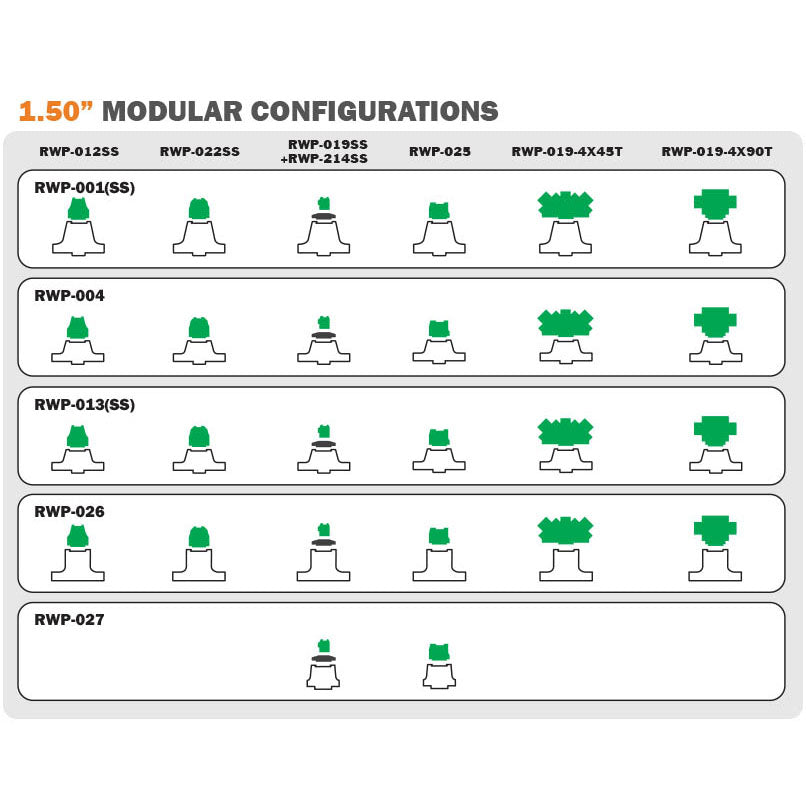

The RWP-022SS is a 0.50? dovetail fixture used for milling applications. It is designed to connect directly to the following 1.50? dovetail fixtures: RWP-001, RWP-001SS, RWP-004, RWP-013, RWP-013SS, RWP-027, RWP-026.

The standard RWP-022SS is manufactured from 17-4 Stainless Steel / Heat treated to H-1150. Custom materials can be special-ordered.

The fixture clamp is made from 17-4 Stainless Steel.

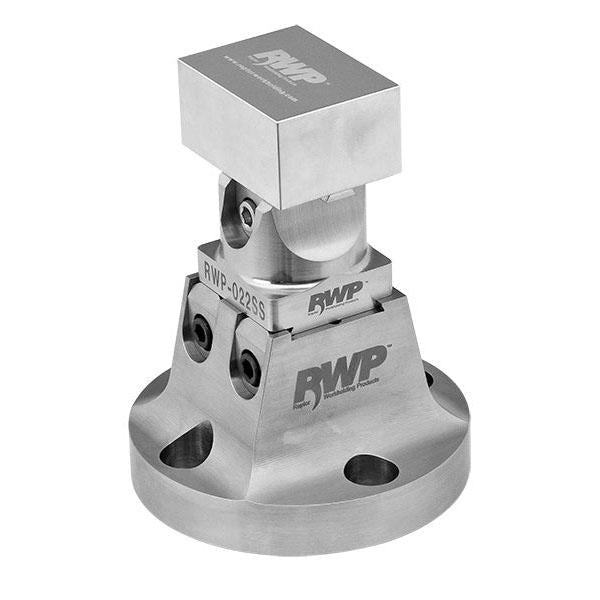

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 1.26? x 1.0? x 0.50? To: 3.25? x 3.25? x 3.25?

Patented Design. Patent US8,672,310 B2

HAVE AN EDM APPLICATION?

USE RAPTOR’S STAINLESS STEEL DOVETAIL FIXTURES

Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.

ONE-STEP SETUP

Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.

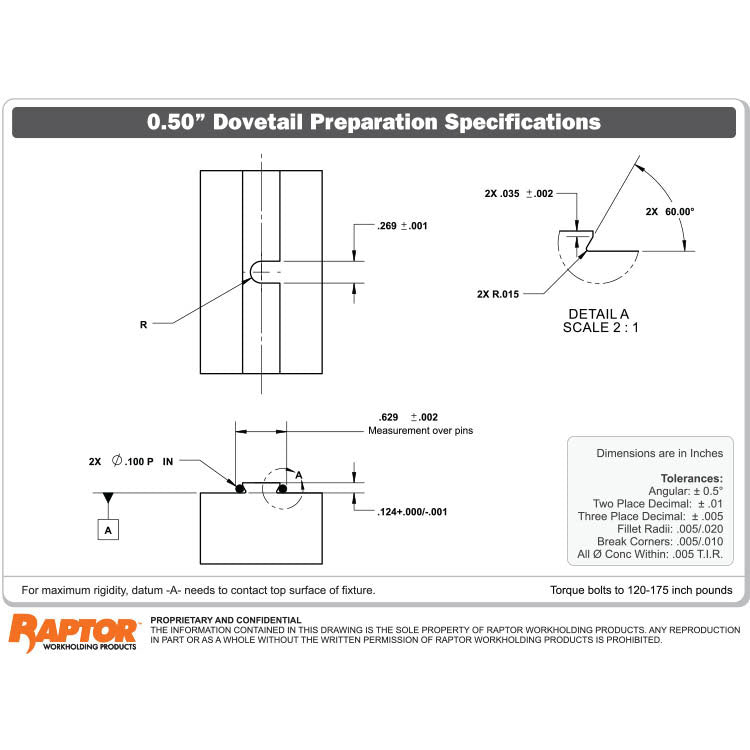

0.5" Dovetail Preparation Specifications
