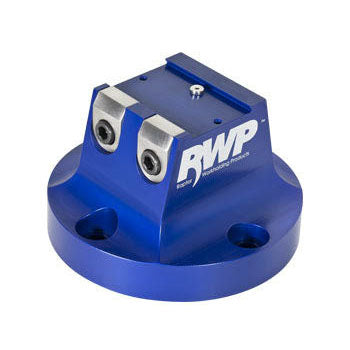

Raptor RWP-026 Aluminum 1.5" Dovetail FixtureBase: 4 holes & 4" dia. bolt circle
SKU: RPT-RWP-026
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-026 Aluminum 1.5" Dovetail FixtureBase: 4 holes & 4" dia. bolt circleFull Description
Dovetail Width in. | 1.500 |
---|---|
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 30 |
Max Workpiece Width in. | 6.75 |
Max Workpiece Length in. | 6.75 |
Max Workpiece Height in. | 6.75 |
Fixture Material | Aluminum |
Number of Clamps | 2 |
Clamp Part Number | RWP-CL301SQ |
Fixture Height in. | 3.000 |
Made for Tombstones with a 2.0? X 2.0? Hole Pattern or 4.0 Bolt Circle – without a boss or plug. The RWP-026 is a 1.50? dovetail holder for milling and turning applications. It offers superior clamping strength while allowing access to five sides of the workpiece.
The standard RWP-026 is manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II. Custom materials can be special-ordered.
The fixture clamps are made from 17-4 Stainless Steel.
Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
* Typical workpiece size dimensions (L x W x H): From: 2.35? x 2.25? x 0.50? To: 6.75? x 6.75? x 6.75?
Patented Design. Patent US8,672,310 B2
