Brand: Raptor Workholding Products
Raptor RWP-505 Steel 150mm Self Center Vise
SKU: RPT-RWP-505
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
*This product can only be purchased with a shipping account. We apologize for the inconvenience.*
Short Description
Raptor Workholding RWP-505 Steel 150mm Self Center ViseFull Description
Base Width | 5.91" |
---|---|
Base Length | 9.84" |
Bed Height | 2.95" |
Jaw Opening | 0-3.88" |
Jaws Reversed | 9.25" |
Maximum Allowed Torque | 75ft/lbs |
Clamping Force @ Max Torque | 6000lbs |
Centering Tolerance +/- | 0.0005" |
RWP-505 is the 150mm Self Center Vise.
Designed to provide reliable, consistent workholding for your manufacturing needs.
- All steel construction
- Automatically positions workpiece in center of vise. Centering tolerance is +/-0.013mm
(0.0005”) and repeatability is 0.001”. - Jaws adjust from either end of vise.
- Jaw clamping range is 0-3.870” as shown, and 4.75”-9.25” with jaws reversed.

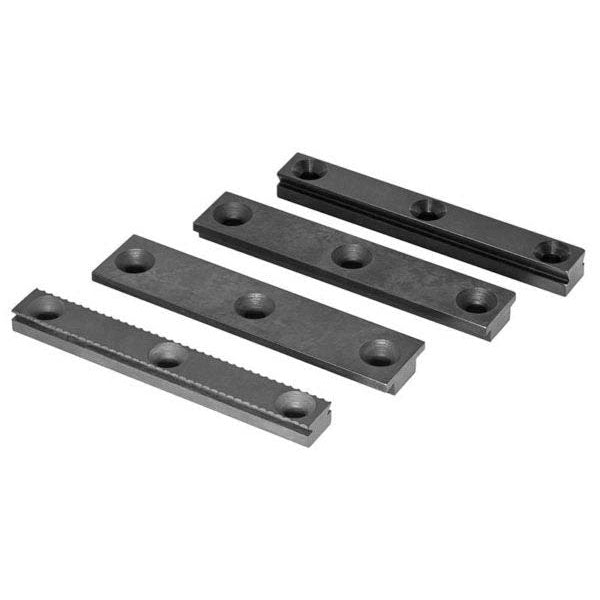

- Jaw insert options available for a variety of holding applications: Dovetail, Serrated, Parallels,
Soft Jaws, TalonGripTM & Stops (all sold separately). - Jaw accessory screws included (6) FHC
Raptor Workholding Products has workholding solutions for your application needs – from start to finish:
- Begin with a Self Centering Vise to either machine the dovetail onto a workpiece or machine a part.
- Then utilize a Dovetail Fixture or a Multi-Fixture to machine the five sides of a workpiece.
- Finally use Pinch Blocks (designed with a dovetail base for quick change) for either machining the sixth side of workpiece for dovetail removal or secondary machining.
