Brand: Iscar

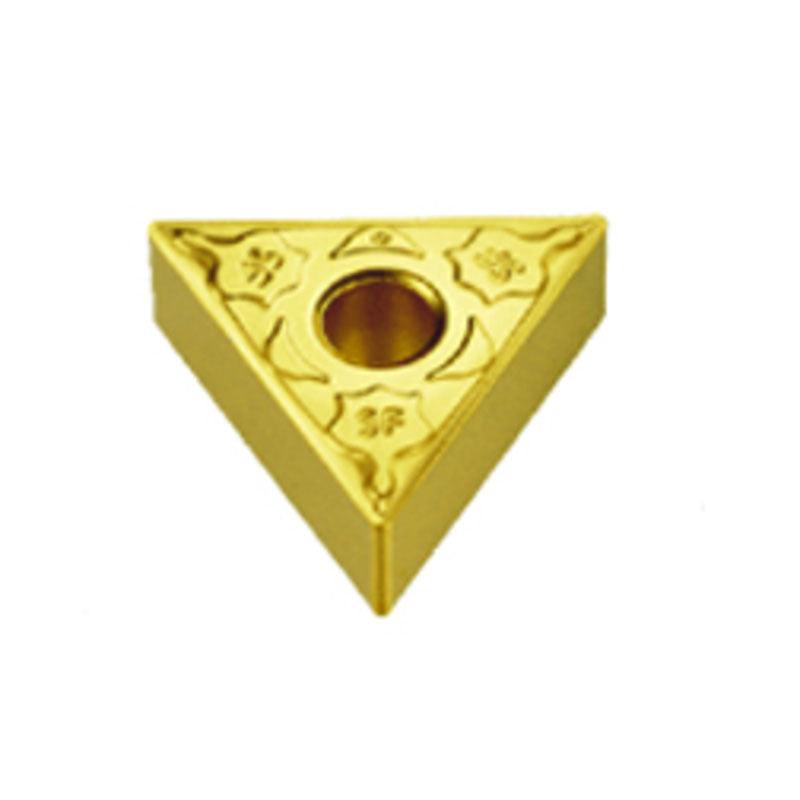

Iscar EH5503640 TNMG 331-SF IC570

SKU: FTS-EH5503640
MPN: 5503640

$12.37
Unit price per
Save $1.17

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Iscar 5503640 TNMG 331-SF IC570

Full Description

Applicable Material	\| Steel \| Stainless Steel \|	Tool Type	Turn Negative Inserts
Application	\| Ext. 60° Triang.93° Appr. Open \| Ext. 60° Triangle 60° Approach \| Ext. 60° Triangle 91° Approach \| Ext. 60° Triangle Facing \| Insert \| Int. 60° Triangle 91° Approach \| Int. 60° Triangle 95° Approach \|	Min D.O.C.	0.016"
Insert Style	TNMG	Depth of Cut Maximum (APMX)	0.079"
Corner Radius (RE)	0.0157"	Min. Turning Feed (ft(min))	0.0016 "/rev
Insert Size	331	Max. Turning Feed (ft(max))	0.0098 "/rev
Cutting Edge Length (L)	0.65"	Chip Breaker Type	SF
Insert Thickness (S)	0.187"	Measurement Type	Inch
Inscribed Circle Diameter (IC)	3/8"	Shape	60° Triangle
Cutting Edge Material	Carbide	Series/List #	TNMG 331-SF
Coating	TiCN+TiN	Body Material	Carbide
Grade	IC570

Family Description

Triangular double-sided inserts used for super finishing; controls chip flow at very low feeds and depths of cut. Excellent crater wear resistance.

For dimensions and tolerances, see more info.
