Brand: FREER NAAMS

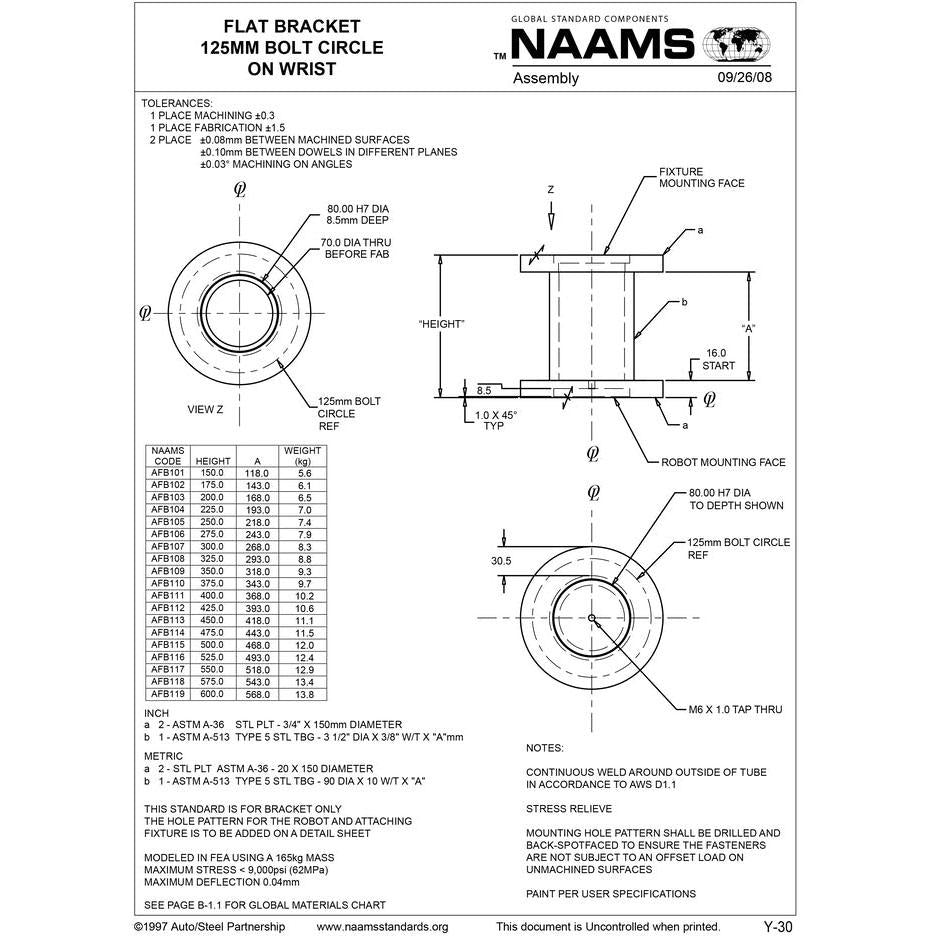

NAAMS Flat Bracket AFB102
SKU: FN-AFB102
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description
Freer NAAMS flat bracket AFB102 is made from ASTM A-36 and A-513 steel with a 125mm bolt circle on wrist. Height is 175mm weighing in at 6.1kg.Full Description
FREER NAAMS FLAT BRACKET AFB102
125mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"
Height: 175mm
A: 143mm
Wt. kg: 6.1
