Brand: FREER NAAMS
NAAMS Socket Head Shoulder Screw F041223B 12 x 90
SKU: FN-F041223B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Freer NAAMS fastener components.Socket head shoulder screw F04 series.
Product number F041223B.
Manufactured out of heat treated alloy steel and coated blue.
Full Description

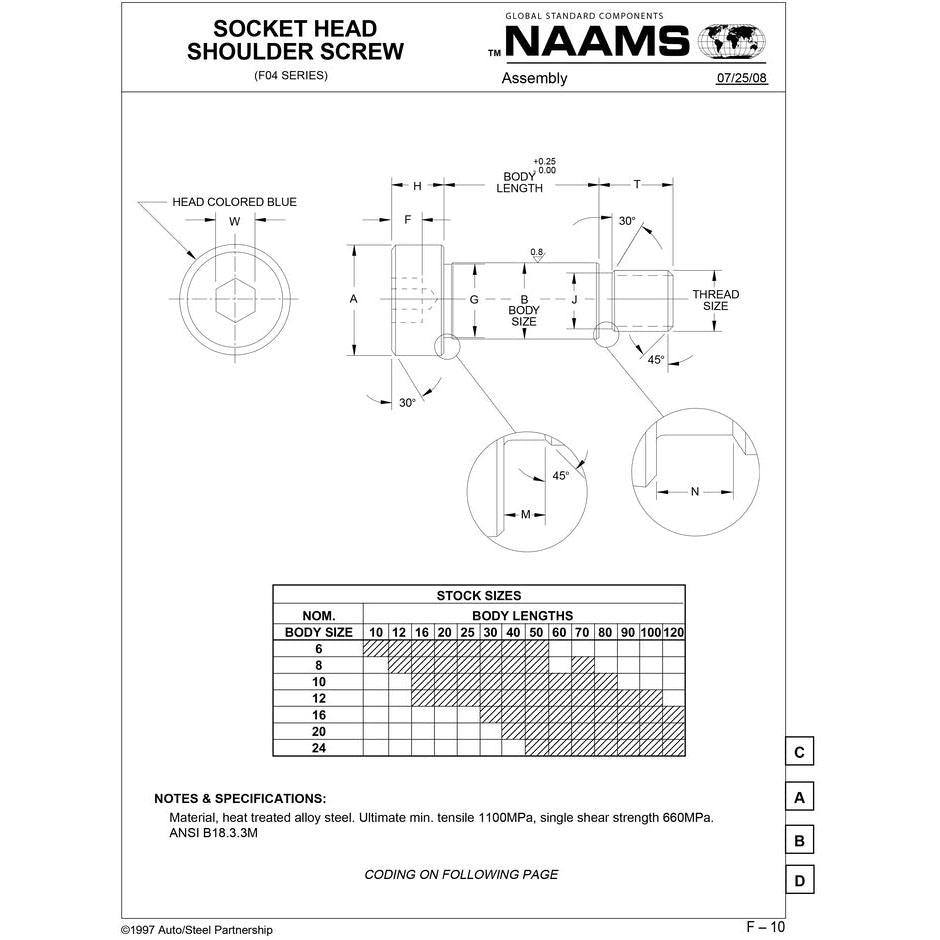

FREER NAAMS SOCKET HEAD SHOULDER SCREW F041223B
Material: Heat Treated Alloy Steel
Blue Coated
Body Size x Body Length: 12 x 90

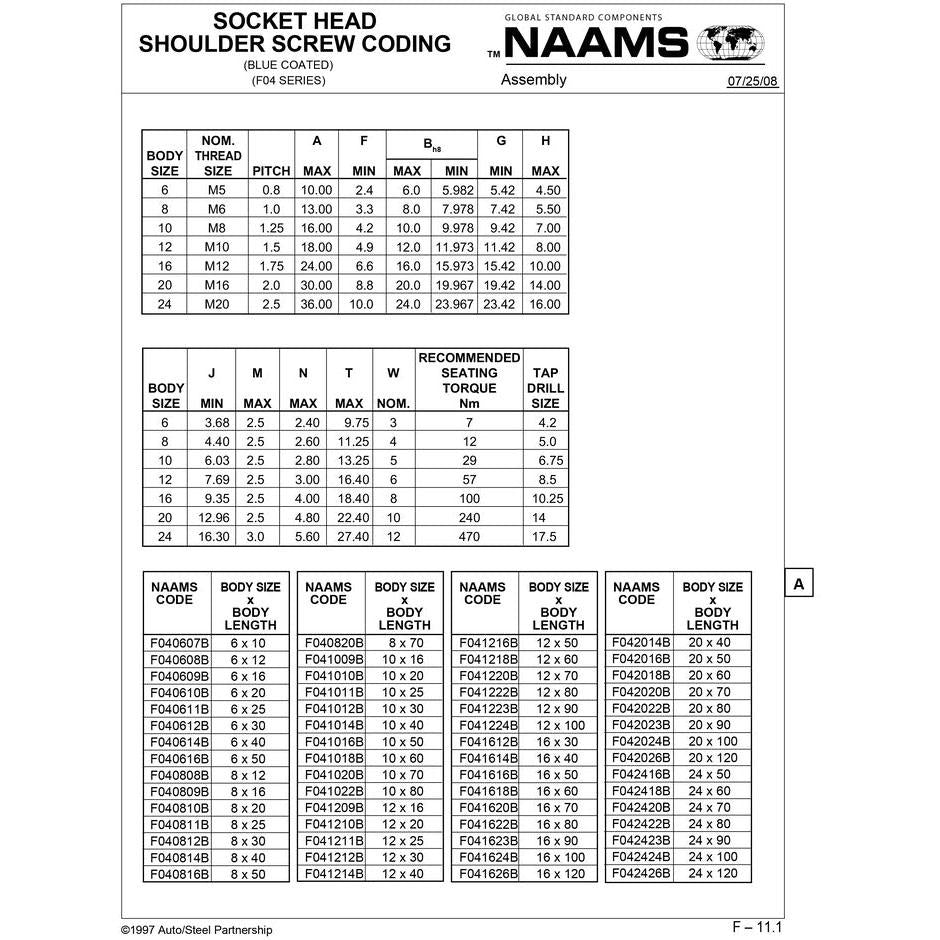

| Body size |
Thread size |
Pitch |
A max |
Bh8 | H max |
T max | W nom. |
Recommended Seating Torque Nm |
Tap drill size |
|
| Max | Min | |||||||||
| 12 | M10 | 1.5 | 18 | 12 | 11.973 | 8 | 16.4 | 6 | 57 | 8.5 |
