Brand: FREER NAAMS

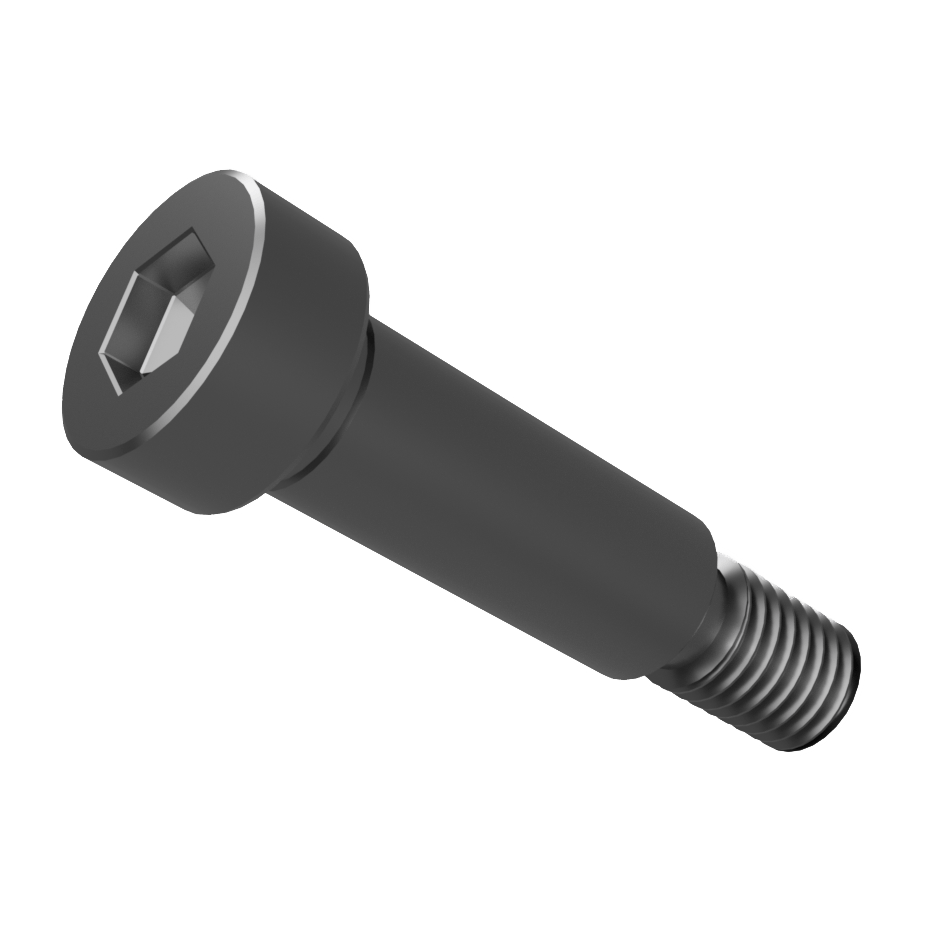

NAAMS Socket Head Shoulder Screw F042023 20 x 90
SKU: FN-F042023
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description
Freer NAAMS fastener components.Socket head shoulder screw F04 series.
Product number F042023.
Manufactured out of heat treated alloy steel.
Full Description

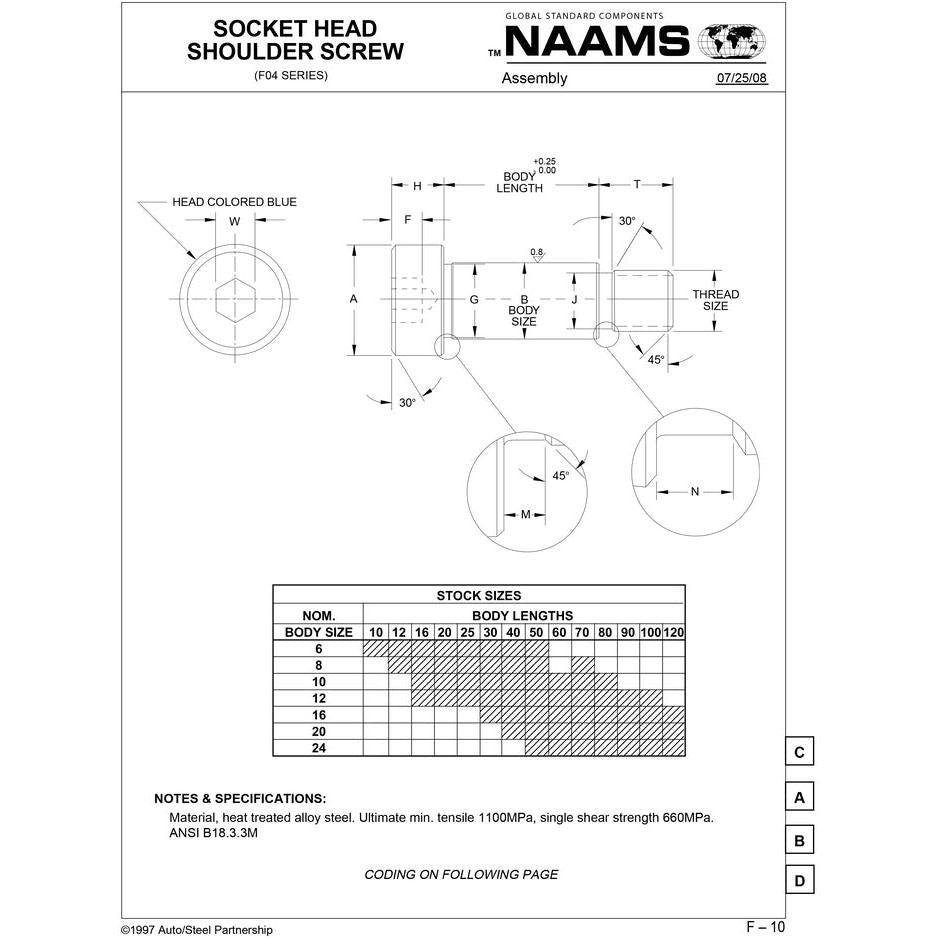

FREER NAAMS SOCKET HEAD SHOULDER SCREW F042023
Material: Heat Treated Alloy Steel
Body Size x Body Length: 20 x 90

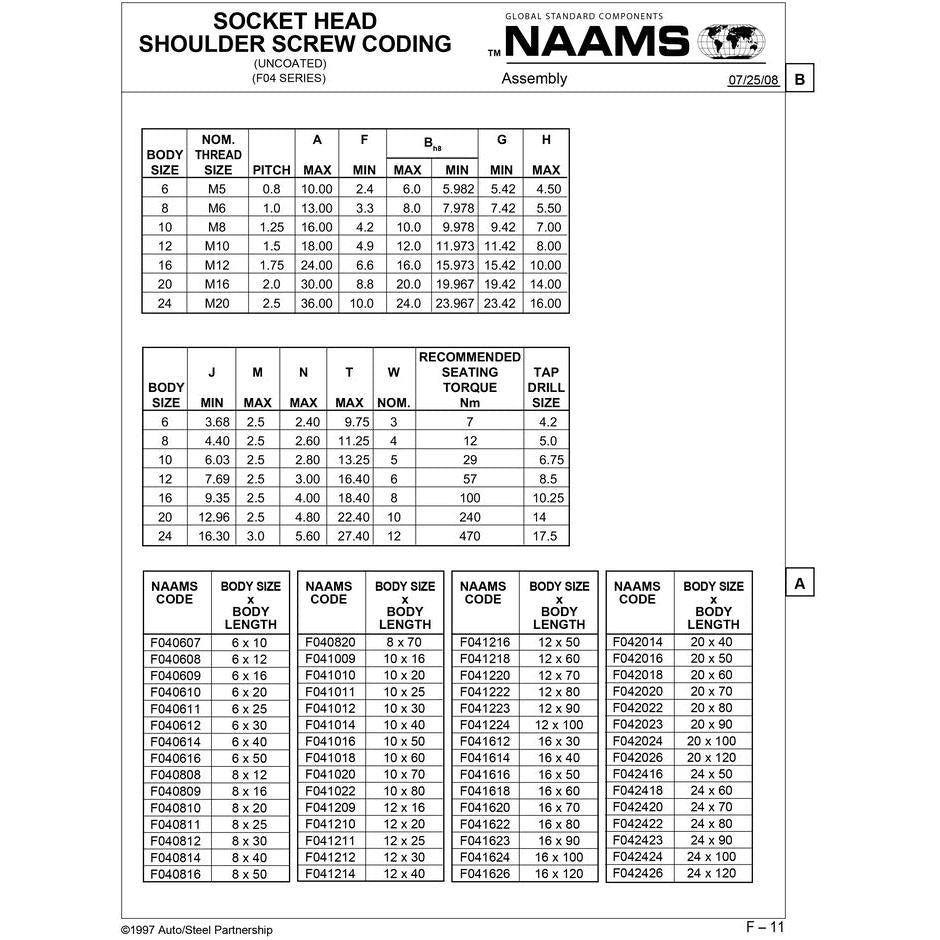

| Body size |
Thread size |
Pitch |
A max |
Bh8 | H max |
T max | W nom. |
Recommended Seating Torque Nm |
Tap drill size |
|
| Max | Min | |||||||||
| 20 | M16 | 2 | 30 | 20 | 19.967 | 14 | 22.4 | 10 | 240 | 14 |
