Brand: FREER NAAMS

NAAMS ASP800 Series Spacers

SKU: FN-ASP800
MPN: ASP800

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

Short Description

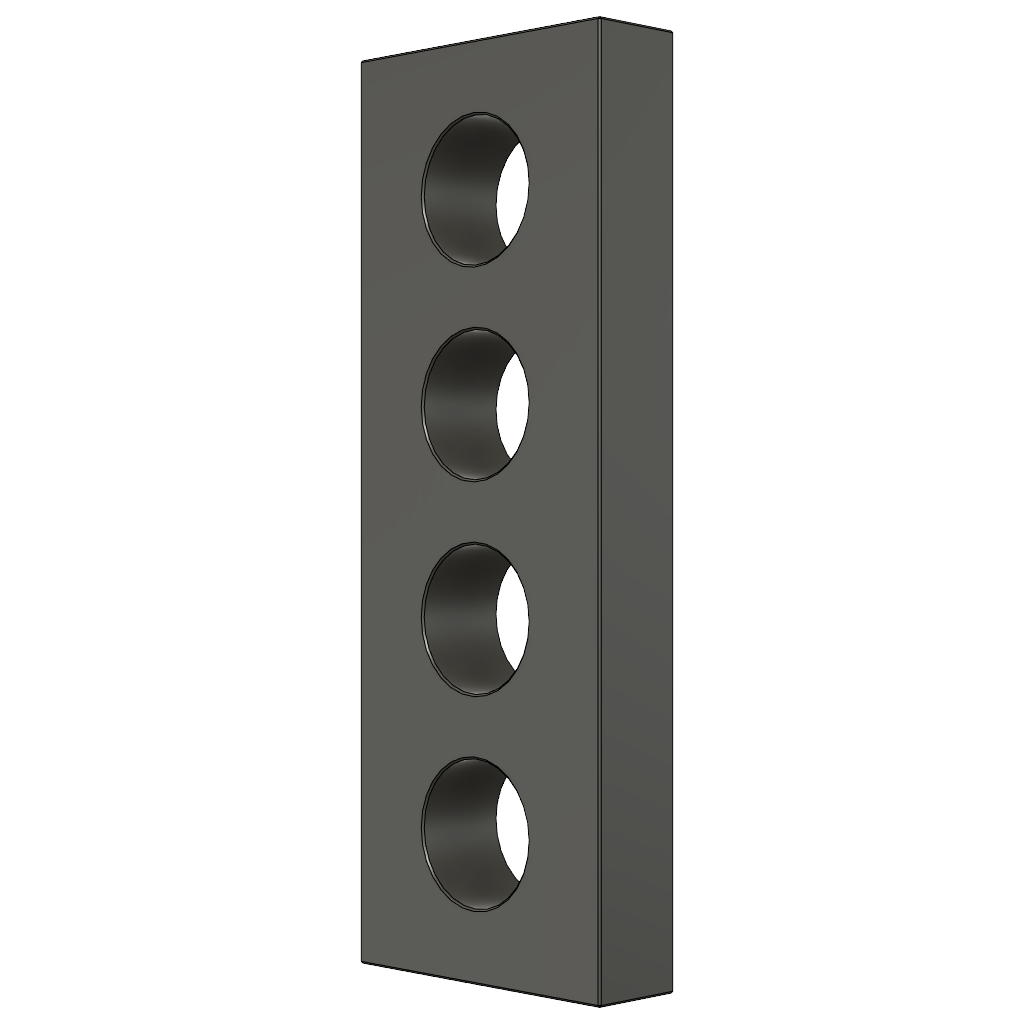

NAAMS ASP800 Series Spacers

Full Description

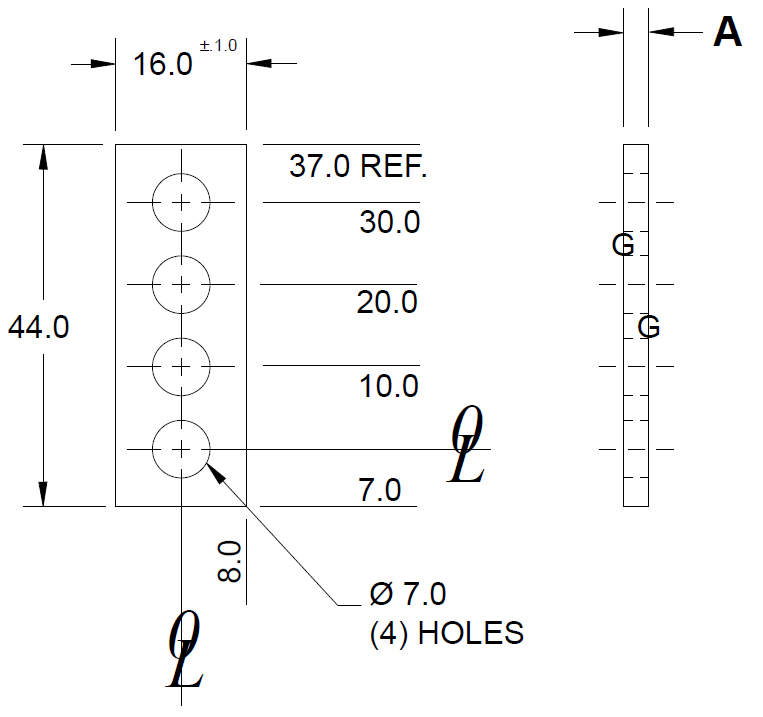

NAAMS ASP800 series spacers come coated in black oxide with a width of 16mm and length of 44mm. The thickness ranges from 3.00 mm to 7.00 mm depending on the NAAMS Code. We can also make them to any custom thickness per customers' request. Call or email us today for a quote!

ASP800 Series Data Sheet

NAAMS CODE	A
ASP830	3.00
ASP832	3.20
ASP834	3.40
ASP836	3.60
ASP838	3.80
ASP840	4.00
ASP842	4.20
ASP844	4.40
ASP846	4.60
ASP848	4.80
ASP850	5.00
ASP852	5.20
ASP854	5.40
ASP856	5.60
ASP858	5.80
ASP860	6.00
ASP862	6.20
ASP864	6.40
ASP866	6.60
ASP868	6.80
ASP870	7.00
