Brand: FREER NAAMS
NAAMS ACA3010-25-22-10-P Power Clamp Arm - Customized ACA010M with 10mm Dowel Holes
SKU: FN-ACA3010-25-22-10-P
MPN:
In-Stock: 100+
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description

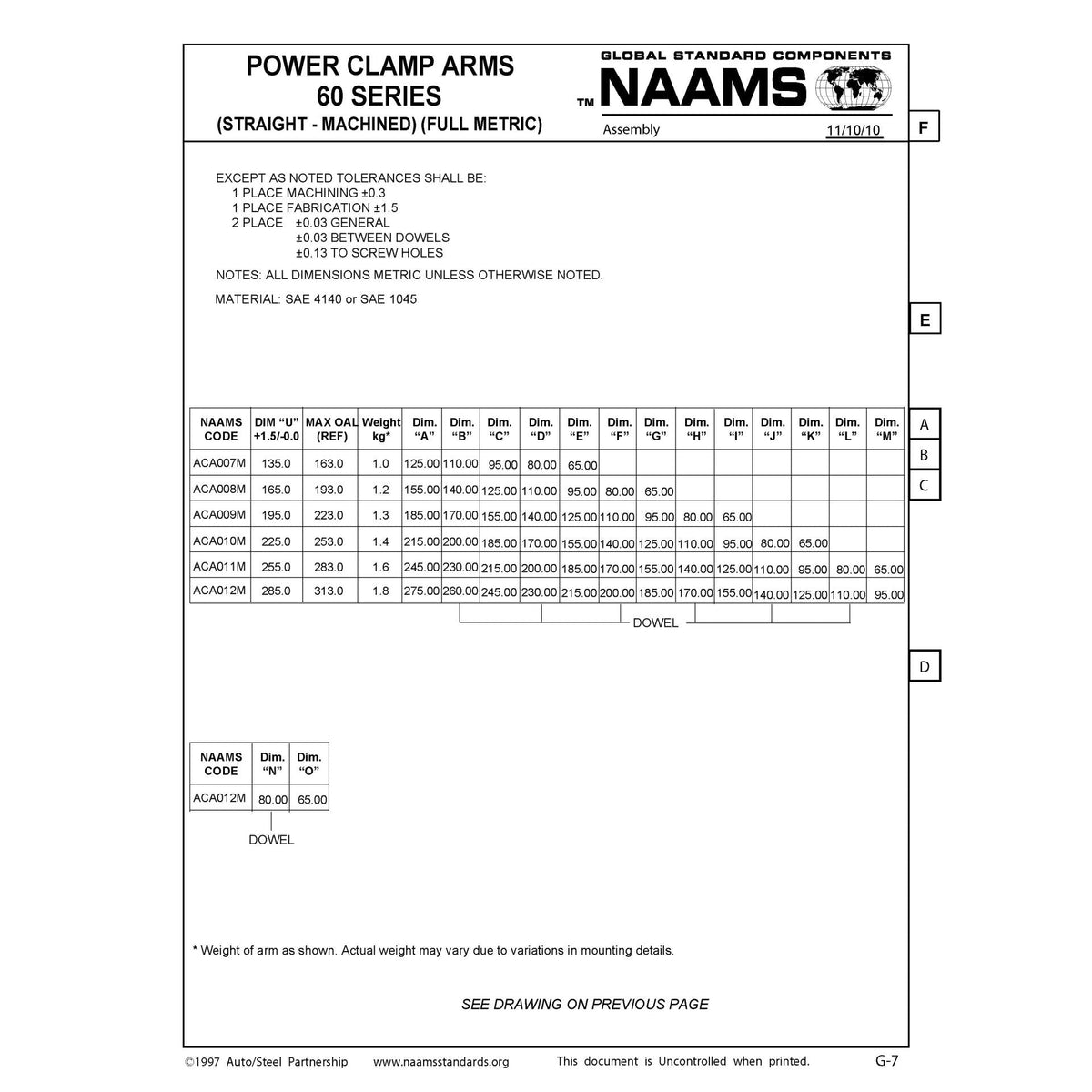

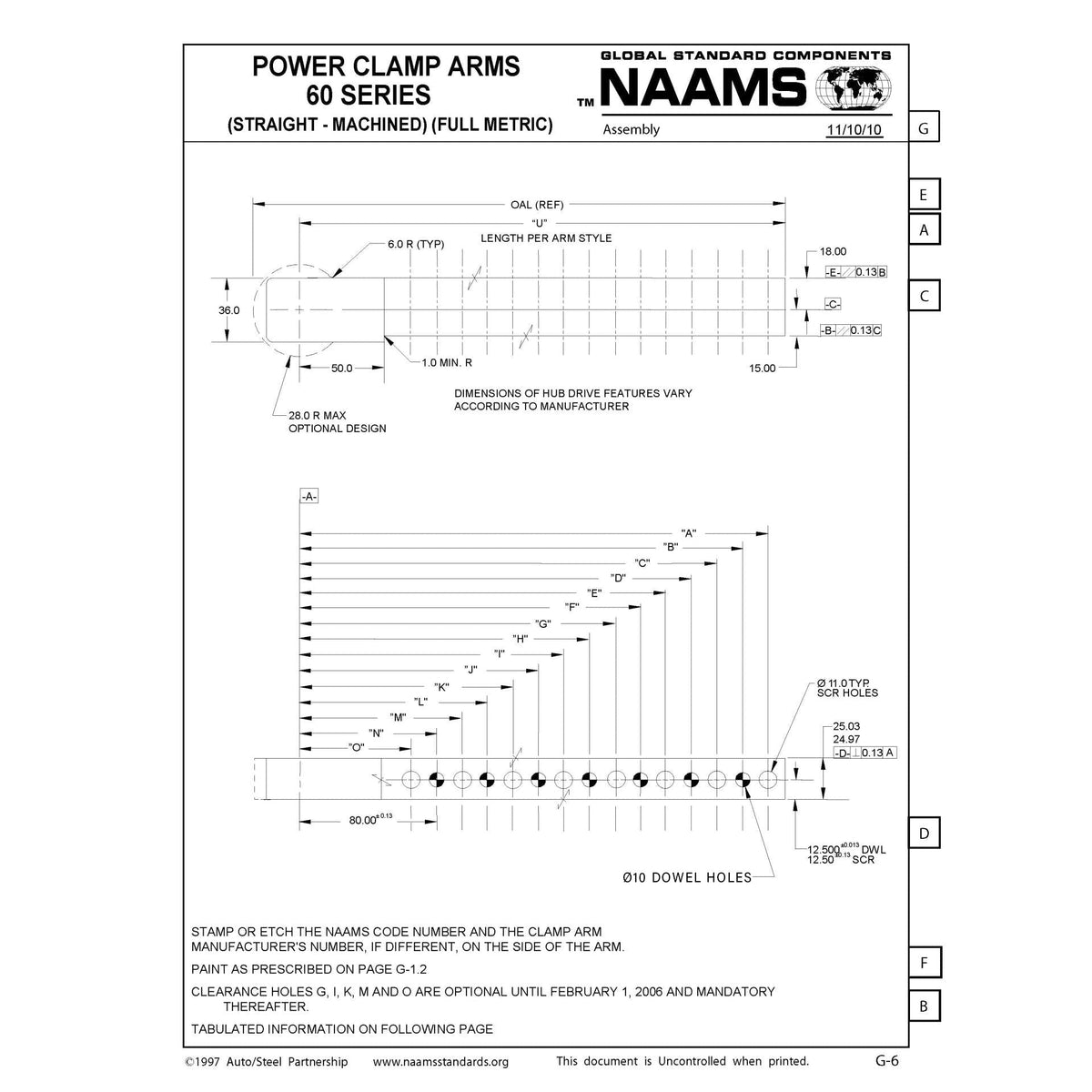

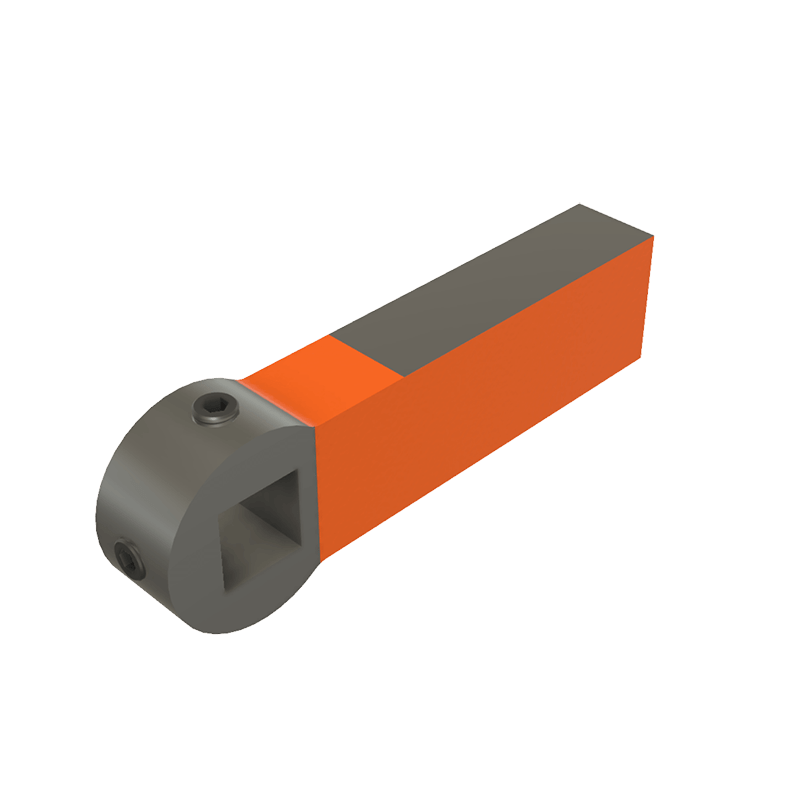

ACA3010-25-22-10-P is a customized NAAMS power clamp arm based off of ACA010M. It is built to the NAAM standards with the exception of oversized dowel holes. The standard 8mm dowel holes have been replaced by 10mm holes and the 22X22mm square hole is cut with wire EDM. Comes powder coated orange.Full Description
NAAMS ACA3010-25-22-10-P Power Clamp Arm - Customized ACA010M with 10mm Dowel Holes
Introducing ACA3010-25-22-10-P, a tailor-made NAAMS power clamp arm derived from the proven ACA010M model. Crafted to meet NAAM standards, this specialized version features an enhancement - oversized dowel holes. The standard 8mm dowel holes have been upgraded to 10mm for increased strength, and the 22X22mm square hole is precision-cut with wire EDM technology, ensuring top-notch performance and reliability. Elevate your operations with this customized solution designed to exceed expectations. Arms come pre-painted with orange powder coat.| Destaco Item Number | ACA3010-25-22-10-P |
| NAAMS Tool I.D. (Alternative Part Number) |
ACA3010M |
| Weight (kg) | 1.4 |
| Width (mm) | 25 |
| Dowel Size (mm) | 10 |
| Screw Size | M10 |
| Clamp Bore (mm) | 63 |
| Offset (mm) | 0 |
| Square hole (mm) | 22X22 |
| Paint | Powder Coat Orange |
