Brand: Carver Clamps

Carver Clamps T500 Machine Vice Low Profile

SKU: CC-T500
MPN: T500

$1,307.71
Unit price per
Save $65.39

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Carver Assembly Information
T500 is made up of the parts listed below
Part Number	Qty in Assembly	In-Stock
T500-1	1	10
T500-2	1	10

Short Description

CARVER CLAMP T500 (1) T500-1 (1) T500-2
Carver Part Number: C301150.
Reference Destaco Model Number: T500.

Carver Machine Vice Catalog
Carver Spare Parts Catalog

*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

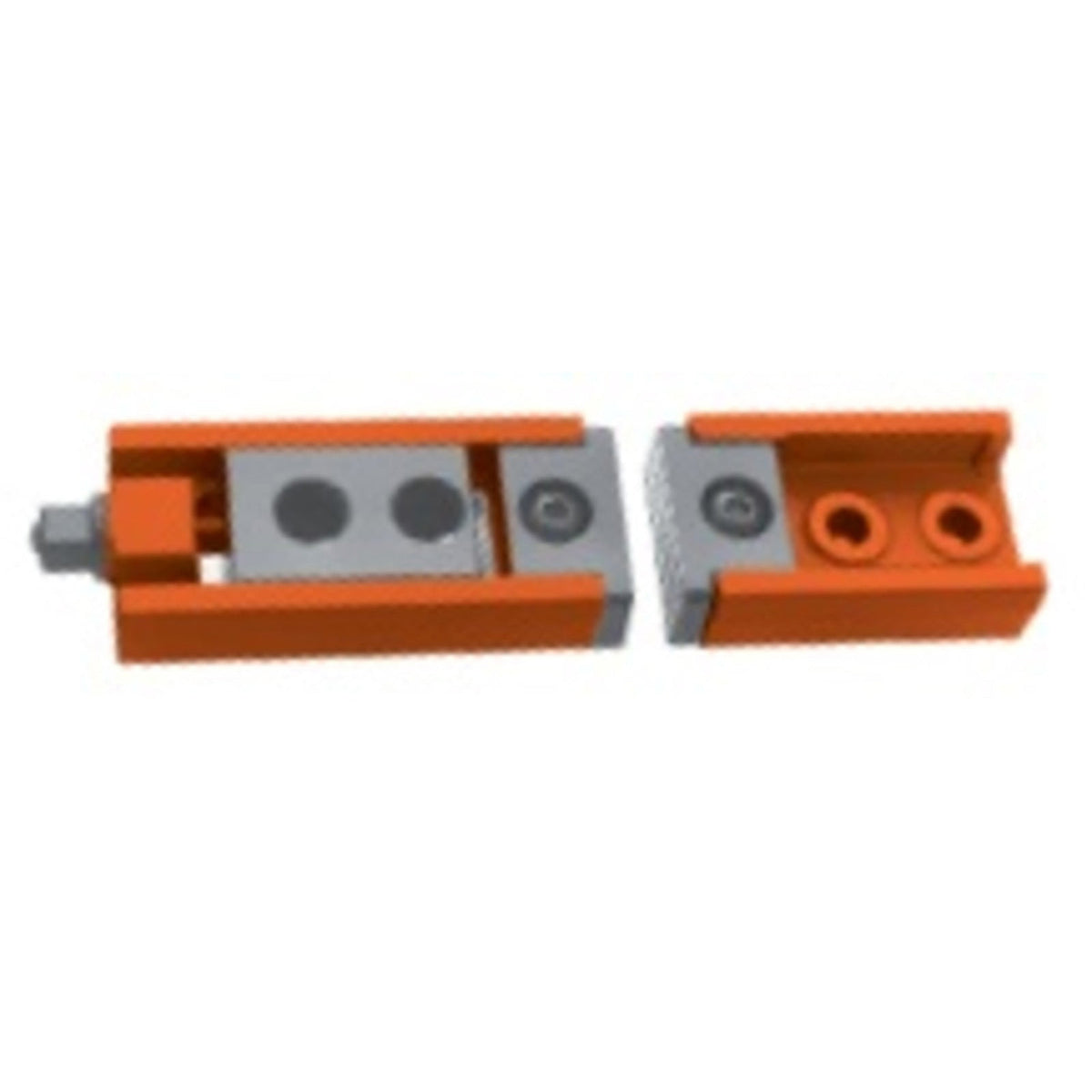

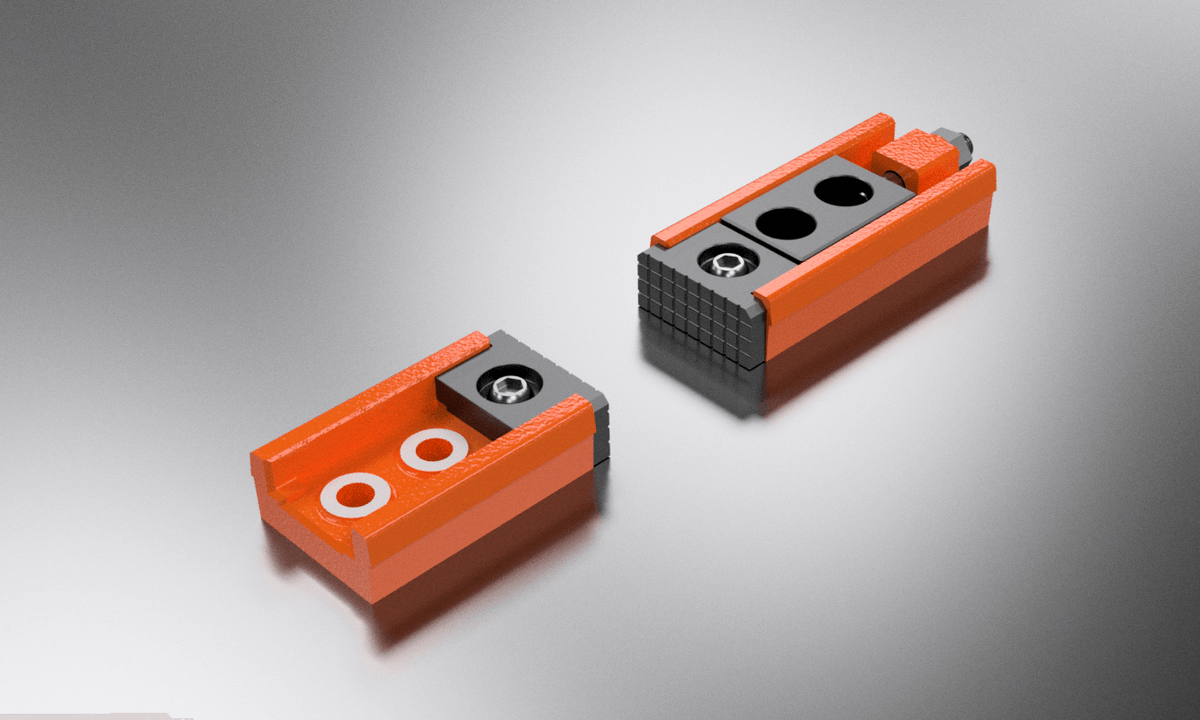

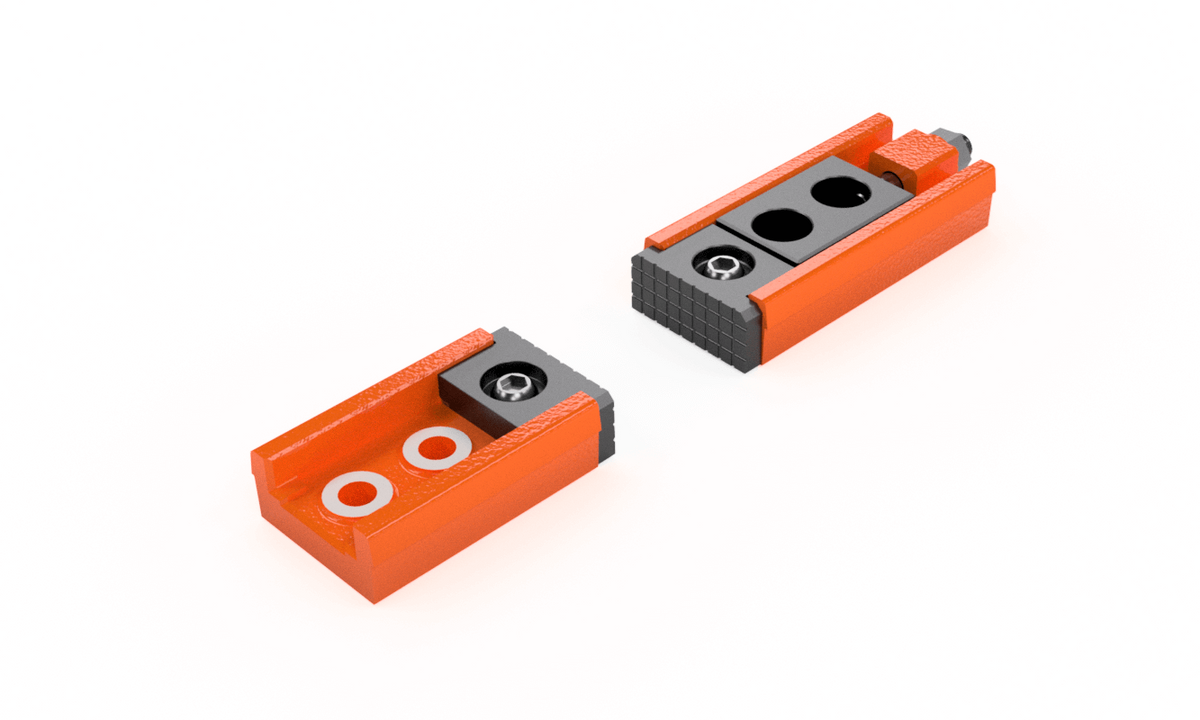

Carver Clamps T500 is their low profile machine vice. It comes complete with both T500-1 and T500-2, giving you both left and right side parts. Great for many workholding applications.

With the ability to handle tasks that conventional vices cannot, Carver Machine Vices are the ideal solution for any drilling, grinding, machines, or planning application. Its two-plane operation allows for horizontal tightening of jaws while the vertical adjustment secures work to the machine table. The low profile design of the vice provides optimal access to cutters, and its individual fixed and moving abutments offer infinite vice capacities, making it a flexible and versatile tool.

Carver Part Number: C301150.
Reference Destaco Model Number: T500.

Carver Machine Vice Catalog

Carver Spare Parts Catalog

Model No.	Part No.	Horizontal Clamping Force daN	Downward Force daN	Jaw Height mm (inch)	Fixing Bolts mm (inch)	Weight kg	A mm	A1 mm	A2 mm	B mm	B1 mm	B2 mm	B3 MIN mm	B3 MAX mm	B4 mm	S HOLE mm
T500	C301150	2250	900	27 (1.1/16)	M12 (1/2)	3.8	30	150	109	67	35	55	55	65	35	13
