NAAMS L-Block Standard Small Block 3x3 Holes

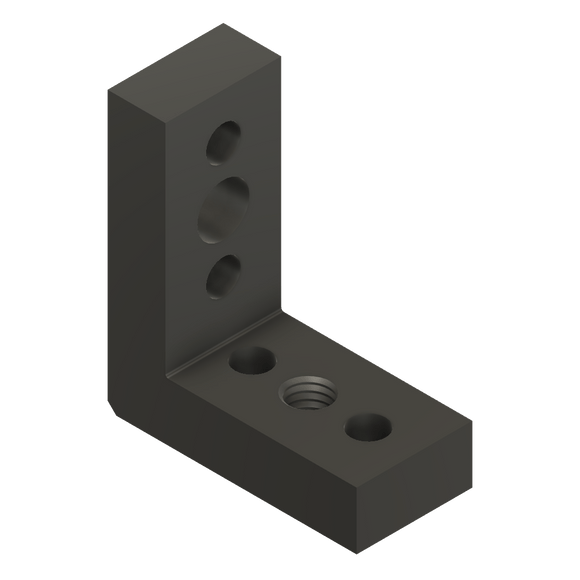

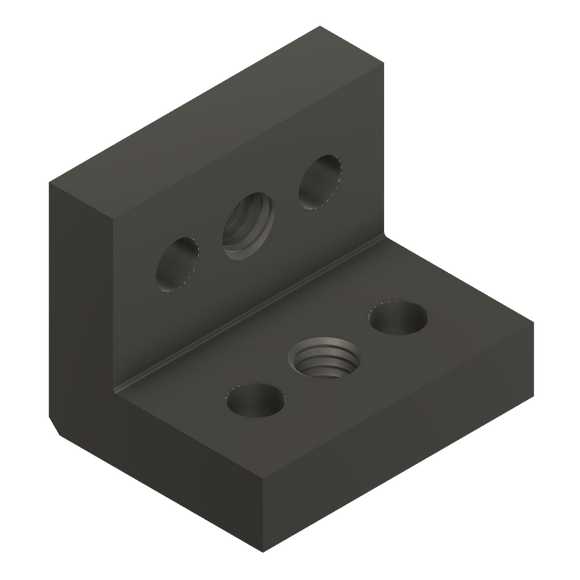

NAAMS L-block small blocks with a 3x3 hole configuration are offered in l-shape and t-shape. Small l-shaped blocks have a height of 48mm by 43mm in length. The width comes 20mm. Wide and small l-blocks are 38mm x 30mm x 30mm. And lastly, the small l-block t-shape blocks have dimensions of 56mm x 48mm x 48mm.
All l-block small blocks are manufactured from Steel ASTM A-36. Hole size configurations come either tapped for an M8 x 1.25 for metric or 5/16” – 18 for standard units. All L-block t-shaped blocks come with a black oxide coating.
For the full T-shaped L-block NAAMS with a 3 hole configuration, click below.
NAAMS L-Block T-Shaped Standard Blocks with 3 Holes
