NAAMS L-Block T-Shape Standard 4 Holes
NAAMS T-shape L-blocks with a 4 hole configuration are t shaped with a height of 85mm by 60mm or 65mm in length. The width comes 50mm. These T-blocks are manufactured from Steel ASTM A-36 or Stainless Steel NM or 304. Hole size configurations come either tapped for an M10 x 1.5 or M8 x 1.25 for metric or 3/8” – 16 for standard units. Untapped holes come in 9mm and 11mm for metrics or 13/32” for standard units. At the base, there are four counter-bored holes for M8 or M10 bolts for metric and 3/8” bolts for standard units. All L-block t-shaped blocks come with a black oxide coating.
For the full T-shaped L-block NAAMS with a 4 hole configuration, click below.
NAAMS L-Block T-Shaped Standard Blocks with 4 Holes
NAAMS L-Blocks ALB140
SKU: FN-ALB140
MPN: ALB140

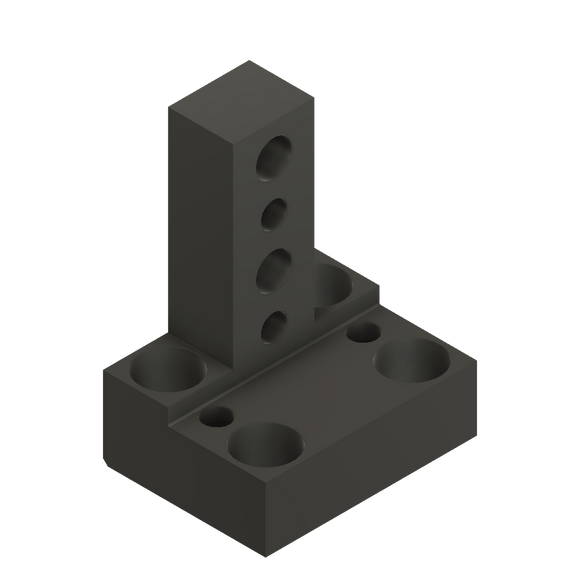

NAAMS L-Blocks ALB140M
SKU: FN-ALB140M
MPN: ALB140M

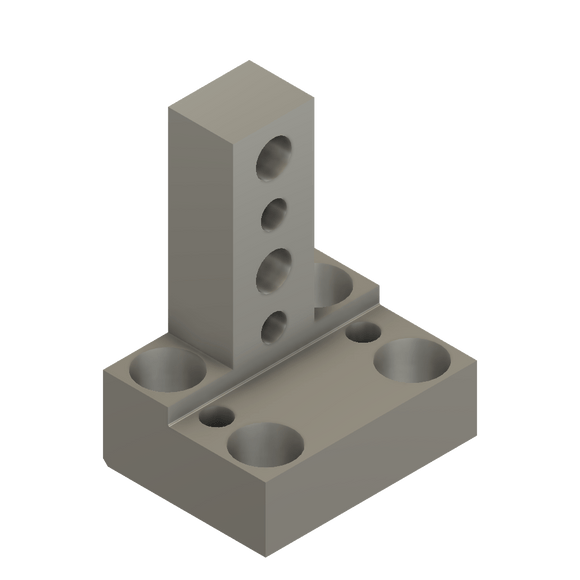

NAAMS L-Blocks ALB141M
SKU: FN-ALB141M
MPN: ALB141M

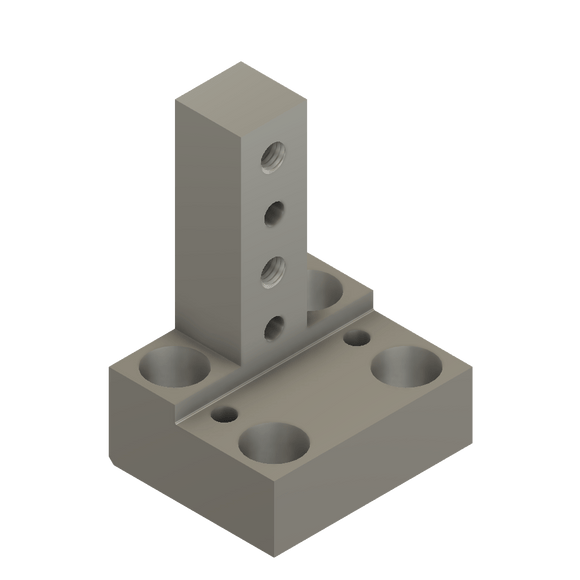

NAAMS L-Blocks ALB331M
SKU: FN-ALB331M
MPN: ALB331M

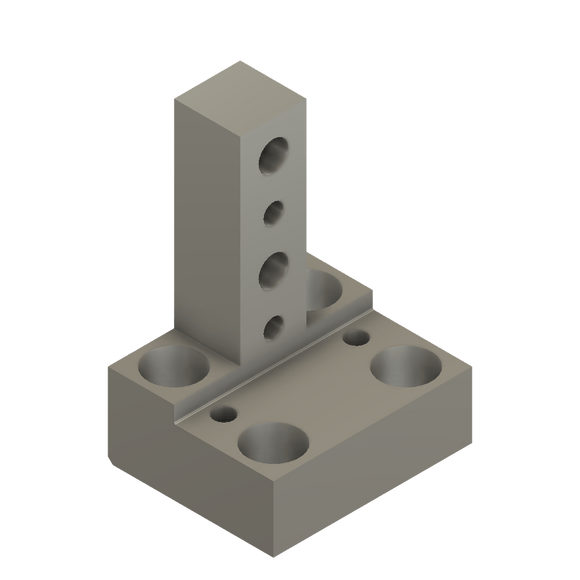

NAAMS L-Blocks ALB341M
SKU: FN-ALB341M
MPN: ALB341M

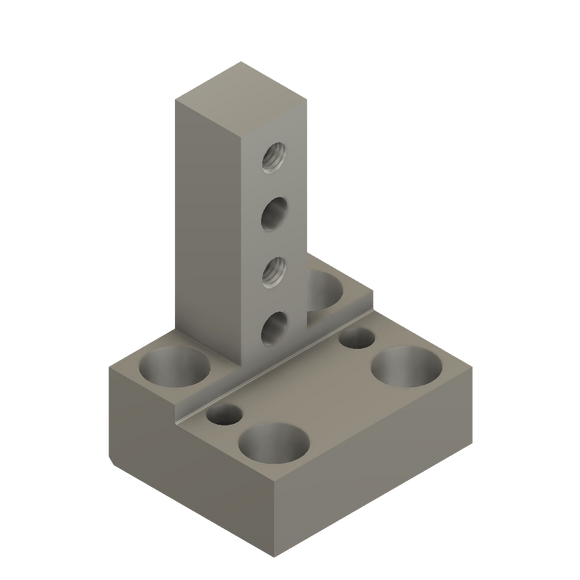

NAAMS L-Blocks ALB552M
SKU: FN-ALB552M
MPN: ALB552M

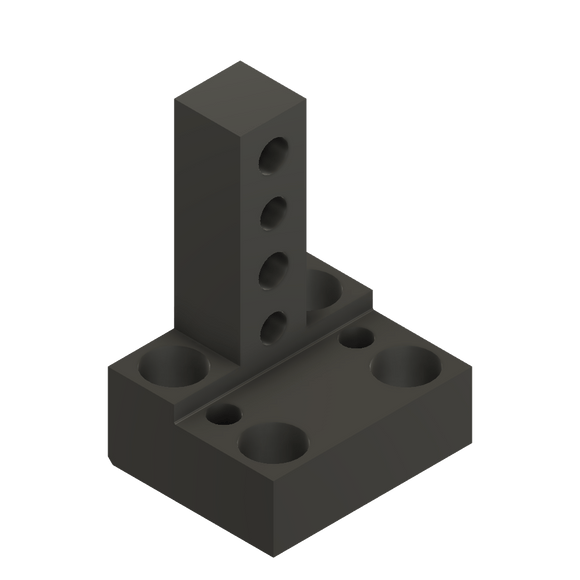

NAAMS L-Blocks ALB553M
SKU: FN-ALB553M
MPN: ALB553M

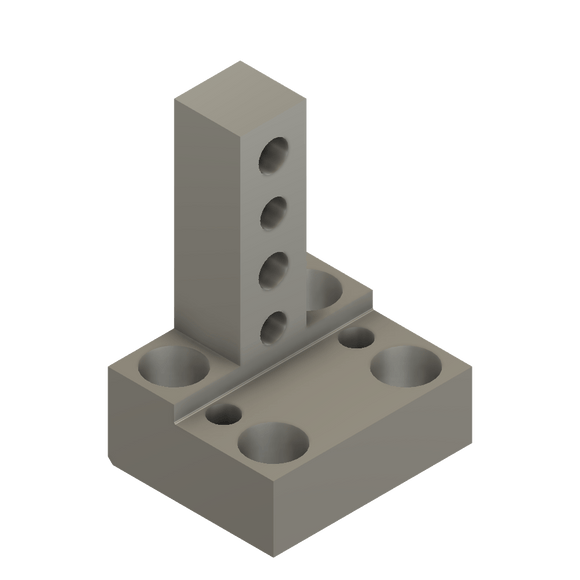

NAAMS L-Blocks ALB554M
SKU: FN-ALB554M
MPN: ALB554M
