Brand: FREER NAAMS
NAAMS Flat Bracket AFB314
SKU: FN-AFB314
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Feel the value of the NAAMS Flat Bracket AFB314, featuring a 200mm bolt circle and made with durable ASTM A-36 steel plate and A-513 type 5 steel tubing. Passionately designed for your needs, this bracket will inspire and energize your projects.
Full Description

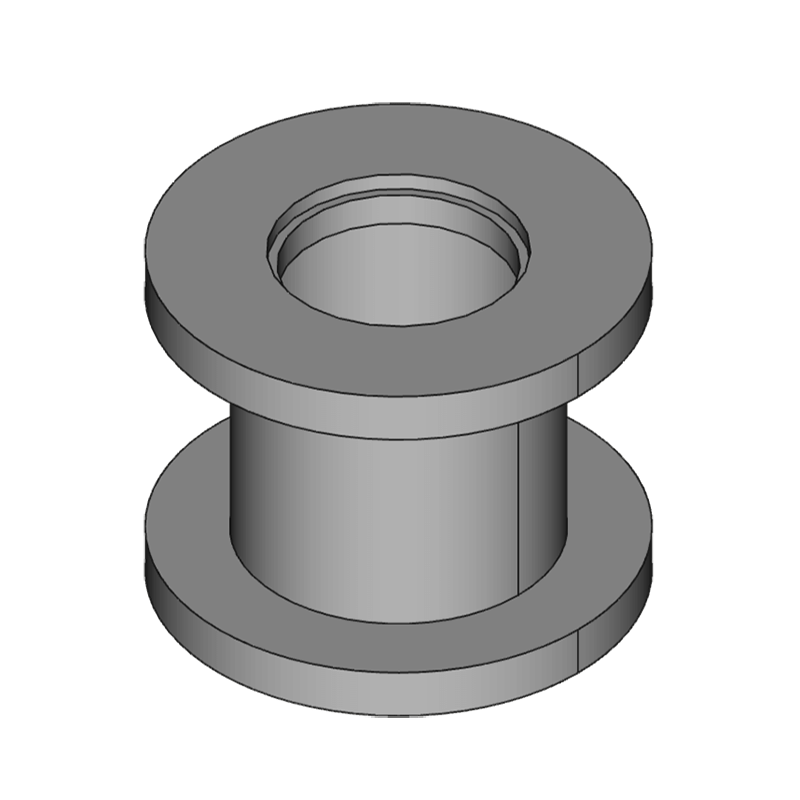

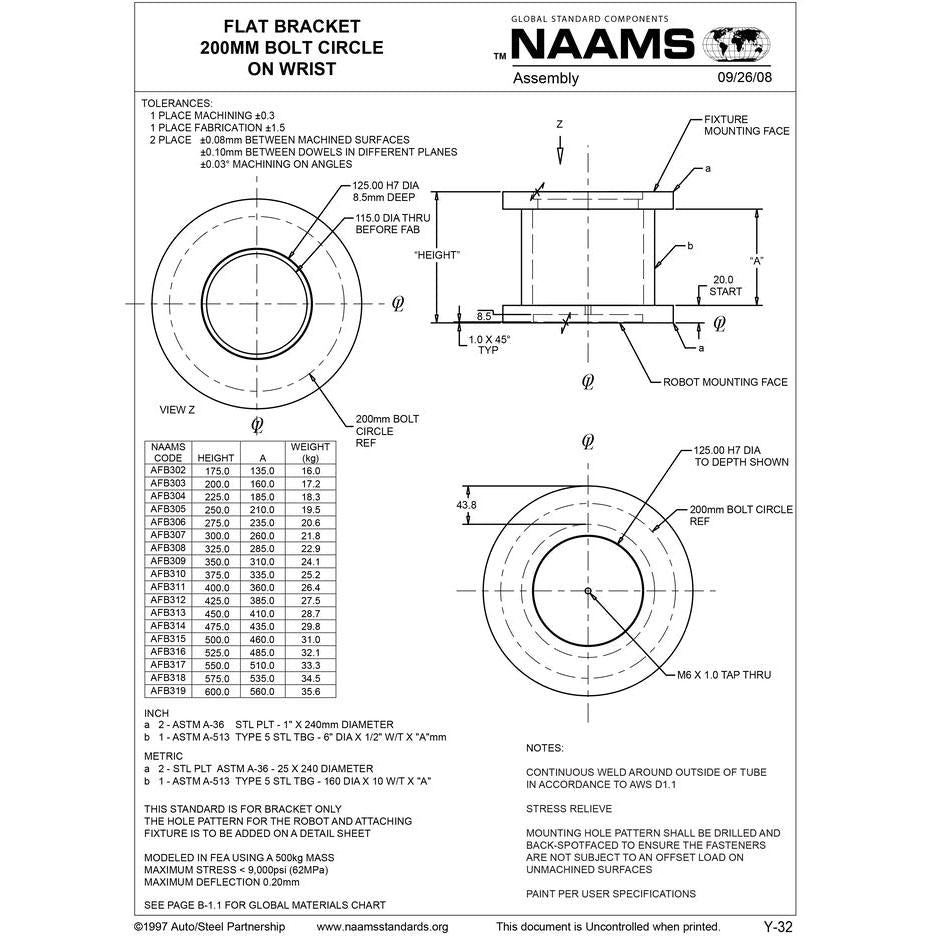

FREER NAAMS FLAT BRACKET AFB314
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 475mm
A: 435mm
Wt. kg: 29.8
