Lateral Plunger - 22150.0207

SKU: EH-22150.0207
MPN: 22150.0207

$6.06
Unit price per
Save $0.32

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

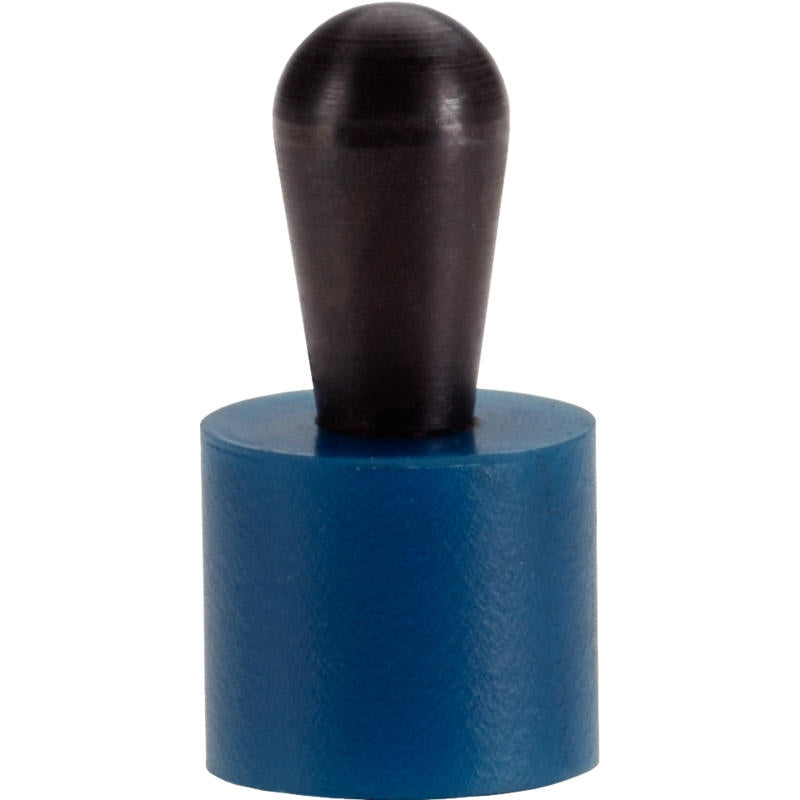

Lateral Plungers with plastic spring and pin 22150.0207.
EH 22150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Halder 22150.0207 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Material

Spring

Plastic

Steel, case-hardened, blackened

Assembly

Moistening the body allows for easier installation.

Installation by pressing in.

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = coordinate dimension,

s = stroke,

z = stop diameter

Calculation dimension x:

y greater than or equal to l2 - d2/2, then x = d2/2 - s

y smaller than l2 - d2/2, then x = d2/2-s-[(l2-d2/2-y)*0,123]

Characteristic

Light spring load = blue spring

Halder 22150.0207 Data Sheet
