Brand: HALDER

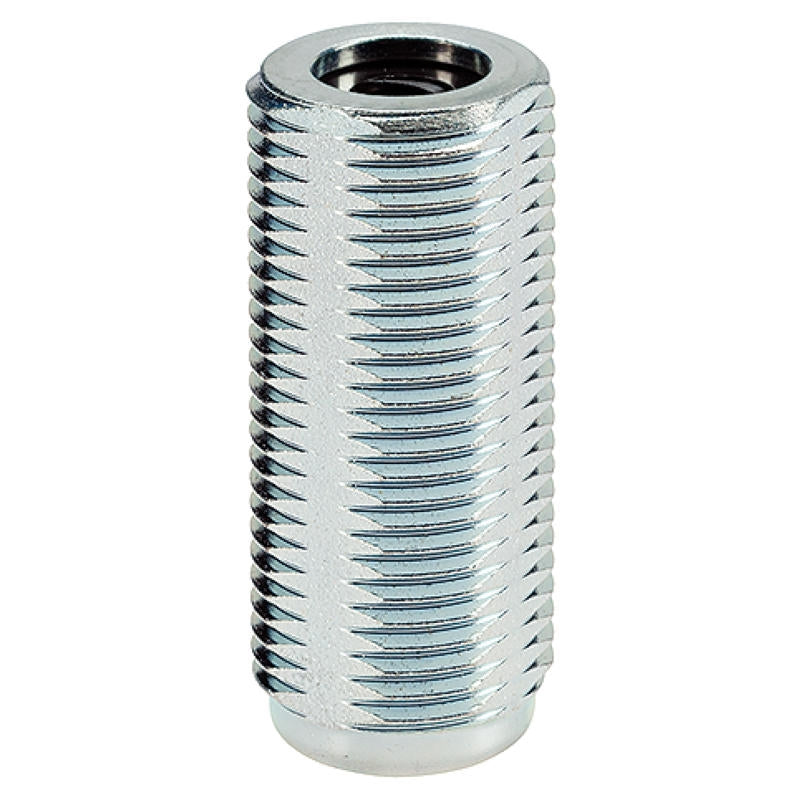

Lateral Plunger - 22150.1310

SKU: EH-22150.1310
MPN: 22150.131

$7.28
Unit price per
Save $0.37

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Lateral Plungers with thread, without seal, with female thread 22150.1310.
EH 22150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Halder 22150.1310 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Material

Body

Steel, zinc-plated

Threaded washer

Steel, blackened

Spring

Stainless steel

Assembly

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = stroke,

z = stop diameter

Calculation dimension x for workpieces: x = d2/2 - s

Lateral plungers are installed by screwing in by means of a mounting tool.

Characteristic

Light spring load = spring from stainless steel

Notes

Individual set screws can be screwed in the plate with threaded hole.

Halder 22150.1310 Data Sheet
