Brand: HALDER

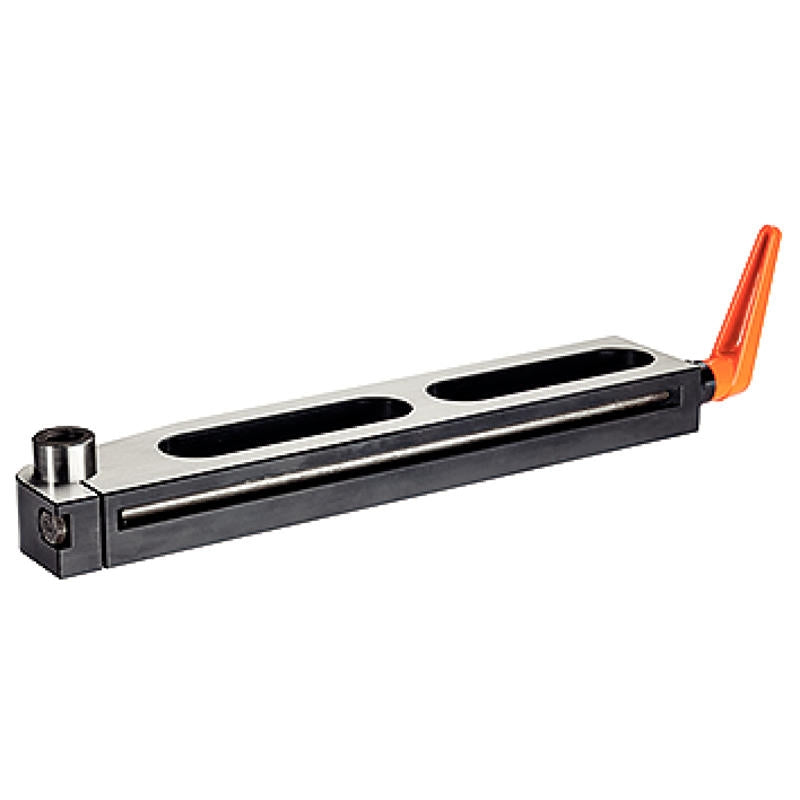

Bedding Support - 23220.0450

SKU: EH-23220.0450
MPN: 23220.045

$1,158.77
Unit price per
Save $60.37

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Bedding Supports 23220.0450.
EH 23220
The bedding support is used to support additional clamping points on components.
The benefits of the bedding support are:
Provides additional support without distortion, helps to eliminate tool vibration, compact, low construction, supports ribs, beads and shackles to reinforce clamped components, distortion-free support of raw parts, easy handling - clamping outside of workpiece is also possible by means of adjustable clamping levers.
Halder 23220.0450 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

The bedding support is used to support additional clamping points on components.

The benefits of the bedding support are:

provides additional support without distortion
helps to eliminate tool vibration
compact, low construction
supports ribs, beads and shackles to reinforce clamped components
distortion-free support of raw parts
easy handling - clamping outside of workpiece is also possible by means of adjustable clamping levers.

Material

Handle

Zinc die-cast

Clamp

Steel, case-hardened, blackened, ground

Operation

By releasing the clamping lever the support bolt contacts the workpiece with a slight spring load.
By clamping the lever the support bolt will be locked in position.
After taking out the workpiece, release the clamping lever; then reset support bolt and clamp via lever.

The supporting height can be adjusted by screwing threaded pins or supports into the female thread of the support bolt.
