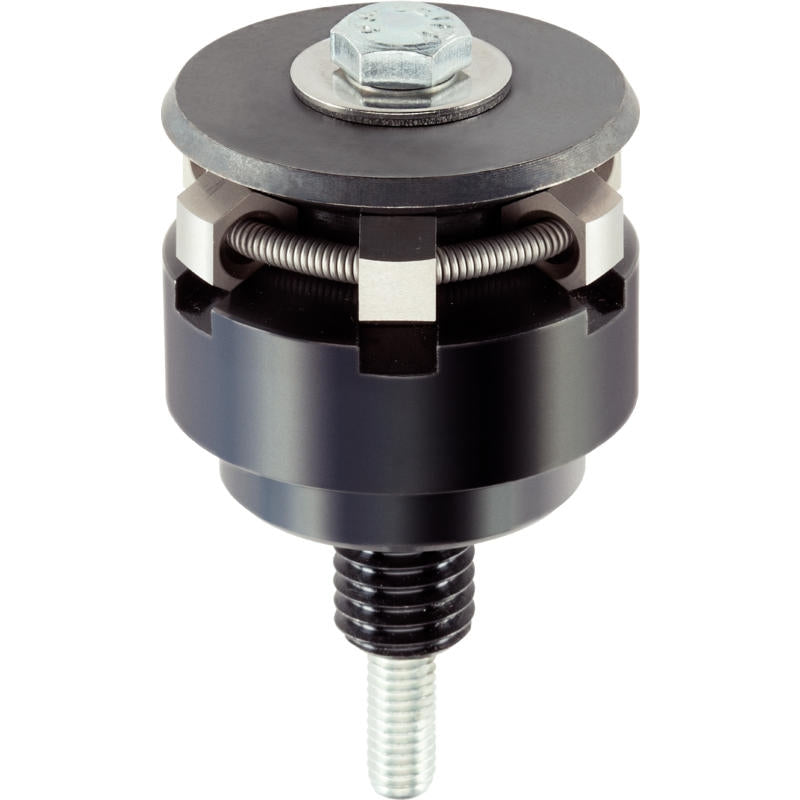

Centering Clamping Element - 23340.0138

SKU: EH-23340.0138
MPN: 23340.0138

$1,064.53
Unit price per
Save $55.47

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Centering Clamping Elements with clamping segments, operation from the bottom 23340.0138.
EH 23340
For centering and clamping in blind holes of workpieces with locating hole. Exact self-centering with a precision of ±0,025 mm. Components with raw or machined surface can be centered positively and are pulled down on the contact points due to the ground clamping elements. The centering clamping element is characterised by large setting ranges and a compact construction height.
Mounting from either top or bottom.
Halder 23340.0138 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

For centering and clamping in blind holes of workpieces with locating hole. Exact self-centering with a precision of ±0,025 mm. Components with raw or machined surface can be centered positively and are pulled down on the contact points due to the ground clamping elements. The centering clamping element is characterised by large setting ranges and a compact construction height.

Mounting from either top or bottom.

Material

Body

Tool steel, hardened, blackened

Spring

Stainless steel

Clamping segments

Stainless steel 1.4112, hardened and ground

Assembly

Assembly instruction for mounting from the top: Take-off clamping plate and screw. Fasten body by means of threaded pin via WS2.

Operation

Operation from bottom manually or automatically with either pneumatic or hydraulic actuation.

Halder 23340.0138 Data Sheet
