Brand: HALDER

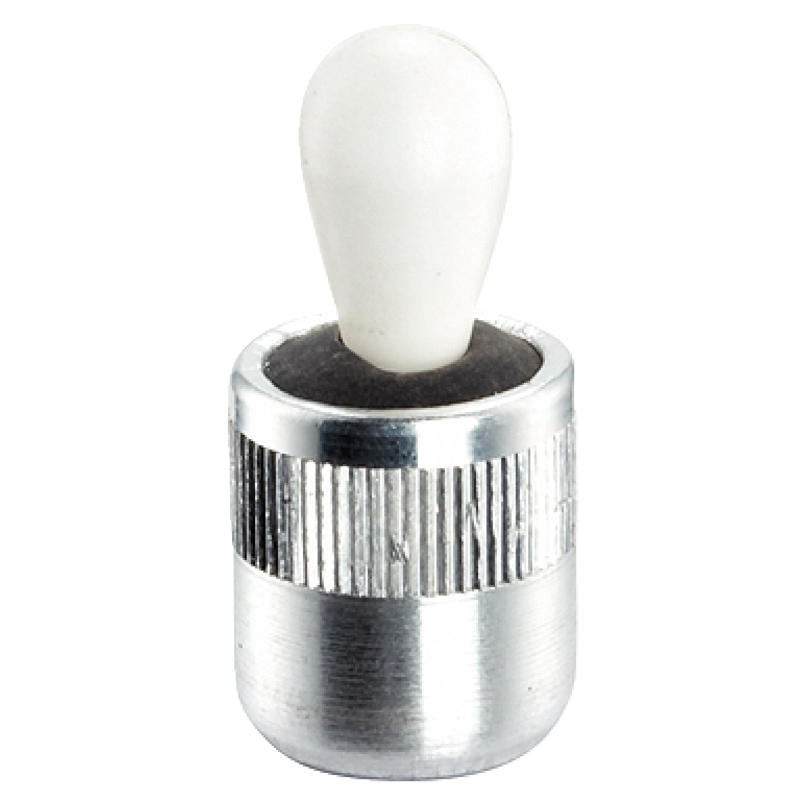

Lateral Plunger - 2B150.0150

SKU: EH-2B150.0150
MPN: 2B150.0150

$10.35
Unit price per
Save $0.54

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Lateral Plungers smooth, with seal - INCH 2B150.0150.
EH 2B150
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Sealed against chips and dirt.
Halder 2B150.0150 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Sealed against chips and dirt.

Material

Seal

Body

Aluminium

Spring

Stainless steel

Thermoplastic POM, white

Assembly

Installation by pressing in.

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = coordinate dimension,

s = stroke,

z = stop diameter

Calculation dimension x:

y greater than or equal to l2 - d2/2, then x = d2/2 - s

y smaller than l2 - d2/2, then x = d2/2-s-[(l2-d2/2-y)*0,123]

Characteristic

Light spring load = spring from stainless steel

Halder 2B150.0150 Data Sheet
