Brand: Mitee-Bite

Mitee-Bite SG7031100 Model 31100 - 1/4"-20 Thread Size - ID Expansion Clamp

SKU: FTS-SG7031100
MPN: 31100

$43.26
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Mitee-Bite 31100 Model 31100 - 1/4"-20 Thread Size - ID Expansion Clamp

Full Description

Type	Xpansion Clamp	Contact Length	0.590"
Thread Size	1/4"-20	Minimum Diameter	0.480"
Model No	31100	Flange Diameter	1.240"
Clamp Height	3/4"	Flange Thickness	0.230"
Holding Force	1,900 lbs	Overall Height	0.980"
Outer Edge Screw	6-32 on .910 BHC	Thread Length	0.500"
Style	Inch	Diameter	0.560"

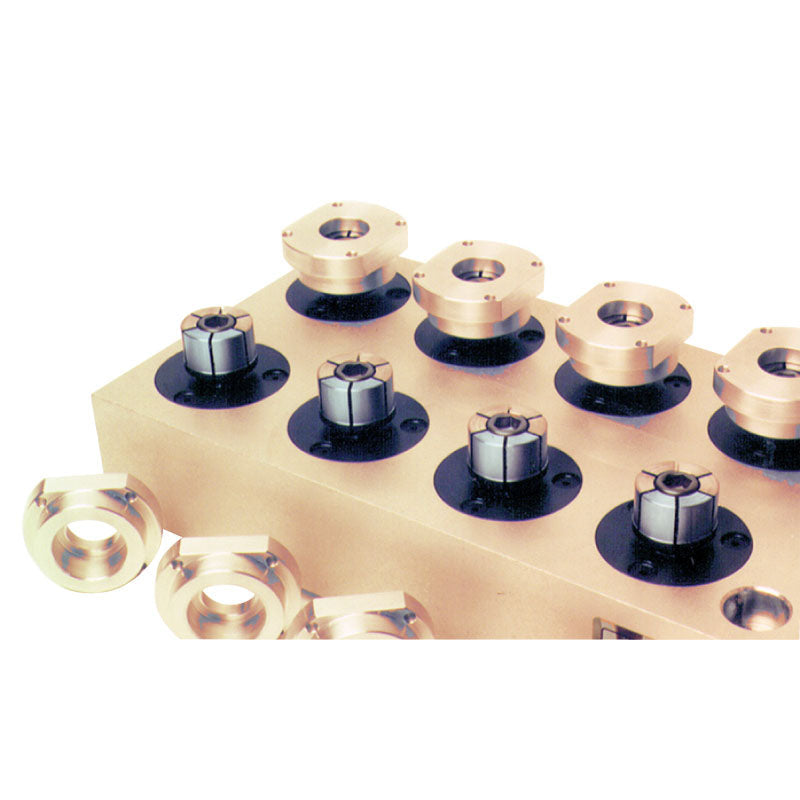

• The ID Xpansion clamp is the ideal way to hold parts on an inside diameter for multiple machining on vertical or horizontal machining centers • It can also be used as an expanding mandrel on a lathe • The flange diameter of the clamp is held to a close tolerance for precision locating in a machined pocket on work cubes and fixture plates • One of the benefits of these low profile clamps is holding many lathe parts, for secondary machining, on one compact set up • They are quickly tightened with a hex key, torque driver or can be mated to hydraulic pull cylinders for automation.
