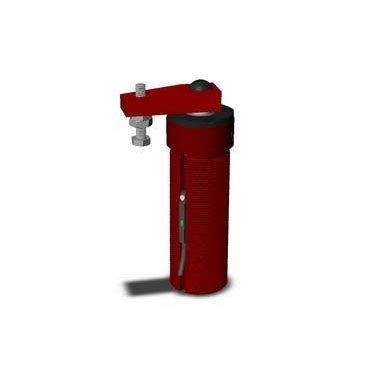

DESTACO 8015 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Brand: DESTACO

DESTACO 8015 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

SKU: DE-STA-CO-8015
MPN: 8015

  • $366.82
    Unit price per
  • Save $28.37
Shipping calculated at checkout.

Only -1 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 8015 threaded body style pneumatic swing clamps in imperial are a must-have for their proven and reliable design, making them perfect for welding and assembly applications. With the option for tapped or through-hole mounting, the tapered piston rod and round style sensor compatibility add even more functionality. The cylinder bore measures 19.1 mm (0.75 in), while the clamping force reaches up to 80 N (18 lbf) at 5 bar (72 psi). Keep your workspace organized and efficient with the included clamping arm and spindle. This product is sure to impress with its 21.5 mm (0.850 in) stroke.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 8015 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or through-hole for recessed mounting. Tapered piston rod allows the clamping arm

  • Sensor ready for round style sensors
  • Clamping arm and spindle included. Available without clamping arm, specify -LA
  • Right-Hand Swing

Stroke (mm) 21.5
Stroke (in) 0.850
Cylinder Bore (mm) 19.1
Cylinder Bore (in) 0.75
Clamping Force @ 5Bar[72Psi] (N) 80
Clamping Force @ 5Bar[72Psi] (lbf.) 18
Mount Threaded Body
Replacement Seal Kit 801560
Swing Direction RH
Air Port size 10-32
Air Consumption (per double stroke at 5 bar) (dm³) 0.060
Air Consumption (per double stroke at 7 psi) (in³) 0.002
Stroke during rotation (mm) 11.8
Stroke during rotation (in) 0.47
Vertical clamp stroke (mm) 9.7
Vertical clamp stroke (in) 0.38
Sensor Ready Yes
Weight (kg) 0.45
Weight (lb) 1.00
Product Series Description Swing Clamp
