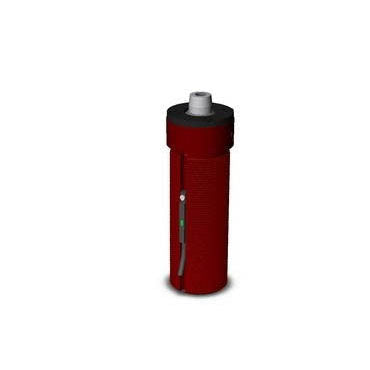

DESTACO 8016-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Brand: DESTACO

DESTACO 8016-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

SKU: DE-STA-CO-8016-LA
MPN: 8016-LA

  • $342.51
    Unit price per
  • Save $26.49
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Introducing the DESTACO 8016-LA - a versatile and reliable threaded body style pneumatic swing clamp that's perfect for welding and assembly. With imperial threaded bodies that can be easily mounted in tapped or through holes, this clamp offers seamless and secure recessed mounting. And with a tapered piston rod and round style sensor compatibility, this clamp is designed for maximum performance. Get ready for powerful clamping force of 80N (18lbf) at 5Bar (72Psi) and a left-hand swing stroke of 21.5mm (0.850in) - all in one compact package. Don't wait, get your Threaded Body Style Pneumatic Swing Clamp today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 8016-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or a through hole for recessed mounting. Tapered piston rod allows the clamping arm

  • Sensor ready for round style sensors
  • Clamping Arm not included
  • Left-Hand Swing
Stroke (mm) 21.5
Stroke (in) 0.850
Cylinder Bore (mm) 19.1
Cylinder Bore (in) 0.75
Clamping Force @ 5Bar[72Psi] (N) 80
Clamping Force @ 5Bar[72Psi] (lbf.) 18
Mount Threaded Body
Replacement Seal Kit 801560
Swing Direction LH
Air Port size 10-32
Air Consumption (per double stroke at 5 bar) (dm³) 0.060
Air Consumption (per double stroke at 7 psi) (in³) 0.002
Stroke during rotation (mm) 11.8
Stroke during rotation (in) 0.47
Vertical clamp stroke (mm) 9.7
Vertical clamp stroke (in) 0.38
Sensor Ready Yes
Weight (kg) 0.45
Weight (lb) 1.00
Product Series Description Swing Clamp
