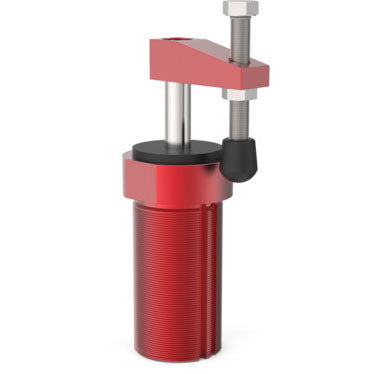

DESTACO 8415 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

SKU: DE-STA-CO-8415
MPN: 8415

$458.85
Unit price per
Save $35.50

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Discover the power and versatility of DESTACO 8415 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS! With proven and reliable design, these clamps are perfect for a wide range of applications, including welding and assembly. The imperial threaded bodies can be easily mounted for recessed or through-hole mounting. Plus, the tapered piston rod allows for precise clamping. Get ready to take on any project with the included clamping arm and spindle. Experience the impressive clamping force of 245N (55lbf) at 5Bar (72Psi). Upgrade to the DESTACO 8415 Pneumatic Swing Clamp today and see the results for yourself!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 8415 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or athrough hole for recessed mounting. Tapered piston rod allows the clamping arm

Sensor ready for round style sensors
Clamping arm and spindle included. Available with out clamping arm, specify -LA
Right Hand Swing

Stroke (mm)	31.8
Stroke (in)	1.250
Cylinder Bore (mm)	30.2
Cylinder Bore (in)	1.19
Clamping Force @ 5Bar[72Psi] (N)	245
Clamping Force @ 5Bar[72Psi] (lbf.)	55
Mount	Threaded Body
Replacement Seal Kit	841560
Swing Direction	RH
Air Port size	3/8-16
Air Consumption (per double stroke at 5 bar) (dm³)	0.250
Air Consumption (per double stroke at 7 psi) (in³)	0.009
Stroke during rotation (mm)	19.1
Stroke during rotation (in)	0.75
Vertical clamp stroke (mm)	12.7
Vertical clamp stroke (in)	0.50
Sensor Ready	Yes
Weight (kg)	0.68
Weight (lb)	1.50
Product Series Description	Swing Clamp
