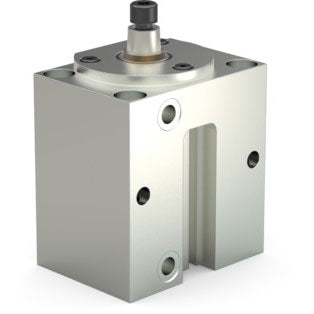

DESTACO 89B32-010-2R - BLOCK STYLE PNEUMATIC SWING CLAMPS

Brand: DESTACO

DESTACO 89B32-010-2R - BLOCK STYLE PNEUMATIC SWING CLAMPS

SKU: DE-STA-CO-89B32-010-2R
MPN: 89B32-010-2R

  • $478.96
    Unit price per
  • Save $31.21
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Introducing the versatile and reliable DESTACO 89B32-010-2R - BLOCK STYLE PNEUMATIC SWING CLAMPS! Perfect for welding and assembly, these clamps feature a magnetic ring piston for precise position sensing and can rotate 360 degrees. Designed for millions of cycles, these lightweight and robust clamps can accommodate T-slot sensors and have a maximum operating pressure of 8 bar (120 psi). Upgrade from the 89B30-010-1R and experience a stroke of 21.0 mm (0.830 in), cylinder bore of 32 mm (1.25 in), and a strong clamping force of 350N (52 lbf) at 5 bar (72 psi). Mountable on the side or top, these clamps are a must-have for any industrial setting.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 89B32-010-2R - BLOCK STYLE PNEUMATIC SWING CLAMPS

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Magnetic ring piston for position sensing. The clamping arm can be positioned 360 degress radially. Accommodates T-slot (8EA-109-1) sensors.

  • Lightweight and robust, designed for several million cycles
  • Clamping arms sold separately
  • Maximum operating pressure 8 bar (120 psi)
  • Replaces 89B30-010-1R
Stroke (mm) 21.0
Stroke (in) 0.830
Cylinder Bore (mm) 32
Cylinder Bore (in) 1.25
Clamping Force @ 5Bar[72Psi] (N) 350
Clamping Force @ 5Bar[72Psi] (lbf.) 52
Mount Block style - side or top mount
Replacement Seal Kit 89B/E32-2-00
Swing Direction RH
Air Port size G-1/8
Air Consumption (per double stroke at 5 bar) (dm³) 0.220
Air Consumption (per double stroke at 7 psi) (in³) 0.008
Stroke during rotation (mm) 11.0
Stroke during rotation (in) 0.43
Vertical clamp stroke (mm) 10.0
Vertical clamp stroke (in) 0.39
Sensor Ready Yes
Weight (kg) 1.02
Weight (lb) 2.25
Product Series Description Swing Clamp
