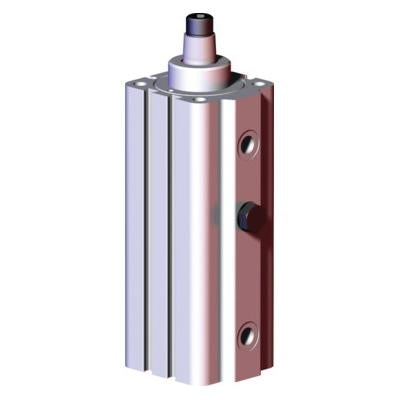

DESTACO 89R50-025-2 - PNEUMATIC SWING CLAMP

SKU: DE-STA-CO-89R50-025-2
MPN: 89R50-025-2

$499.84
Unit price per
Save $38.66

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Enhance your clamping capabilities with the versatile and reliable DESTACO 89R50-025-2 Pneumatic Swing Clamp. This compact design allows for rapid, unobstructed access to the clamping station and can accommodate both 4mm round and 6.5mm X 5mm T-slot style switches. With a field-adjustable swing direction, multiple mounting accessories, and a robust design for millions of cycles, this clamp is ready to elevate your productivity. 52.0mm of stroke and a 50mm cylinder bore provide a clamping force of 614N at 5Bar (72Psi), ensuring secure and reliable holding. Upgrade to the DESTACO 89R50-025-2 pneumatic swing clamp for improved performance and efficiency in all your clamping needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89R50-025-2 - PNEUMATIC SWING CLAMP

Product Details

The compact design and high reliability make these swing clamps suitable for applications where rapid and unobstructed access to the clamping station is required. New, updated design accommodates 4mm round as well as 6.5mm X 5mm T-slot style switches.

Swing direction is field adjustable between left or right
Multiple mounting accessories
Sensor ready
Robust design for several million cycles

Stroke (mm)	52.0
Stroke (in)	2.500
Cylinder Bore (mm)	50
Cylinder Bore (in)	1.97
Clamping Force @ 5Bar[72Psi] (N)	614
Clamping Force @ 5Bar[72Psi] (lbf.)	137
Mount	Block style
Replacement Seal Kit	89R50-00
Swing Direction	LH, RH, Straight
AirPort size	G-1/8
Air Consumption (per double stroke at 5 bar) (dm³)	1.130
Air Consumption (per double stroke at 7 psi) (in³)	0.040
Stroke during rotation (mm)	27.0
Stroke during rotation (in)	1.06
Vertical clamp stroke (mm)	25.0
Vertical clamp stroke (in)	0.98
Sensor Ready	Yes
Weight (kg)	1.80
Weight (lb)	3.97
Product Series Description	Swing Clamp
