ACTEK AK44410 PIVOT LIFTING PLATE 3/4-10 7000 lbs

Short Description

Unleash the full potential of your lifting power with the ACTEK AK44410 PIVOT LIFTING PLATE. Boasting a thread size of 3/4" - 10 and a rated load of 7,000 lbs, this plate can handle even the toughest tasks. With a pivot angle of 180° and a safety factor of 5:1, you can trust in its stability and reliability. Made of durable alloy steel and coated in a sleek black oxide finish, this plate is built to last and impress. Take your lifting game to the next level with the ACTEK AK44410 PIVOT LIFTING PLATE.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK44410 PIVOT LIFTING PLT 33/4-10 7000 lbs

High Strength Alloy screws must be used.
Both UNC and Coil available.

• Large Bail Pivots 180°.
• Rugged tapered plate minimizes shear force on high strength alloy screw.
• Base plate can be welded into position thus eliminating use of screws.
• Alloy Steel
• Ideal for some OEM applications.
• Rated lifting capacity from 7000 lbs. to 10000 lbs.
• Safety Factor : 5:1.
• Thread engagement 1 1/2 times screw diameter.
• Use high tensile alloy screw equivalent to Grade 8.

Finish: Black Oxide|Cadmium Plated

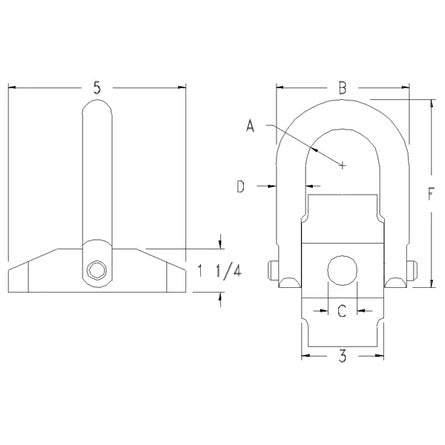

Part Number	Rated Load	Thread Size	A	B	C	D	F	Torque	Weight
AK44410	7,000 lbs	3/4" - 10	1.40 in	4 13/16 in	3/4 in	1 in	6 1/2 in	100 ft-lbs	6.8 lbs
