ACTEK AK44415 PIVOT LIFTING PLATE 7/8-9 8000 lbs

Short Description

Experience the strength and versatility of the ACTEK AK44415 PIVOT LIFTING PLATE! With a thread size of 7/8"-9 and a rated load of 8,000 lbs, this plate can handle even the toughest lifting jobs. Featuring a 180° pivot angle and a safety factor of 5:1, it allows for smooth and secure maneuvering. Made from high-quality alloy steel with a sleek black oxide finish, this plate is built to last. And with a torque of 160 ft-lbs and a weight of only 6.7 lbs, it's easy to use and transport. Trust the ACTEK AK44415 for all your lifting needs!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK44415 PIVOT LIFTINGPLT 7/8-9 8000 lbs

High Strength Alloy screws must be used.
Both UNC and Coil available.

• Large Bail Pivots 180°.
• Rugged tapered plate minimizes shear force on high strength alloy screw.
• Base plate can be welded into position thus eliminating use of screws.
• Alloy Steel
• Ideal for some OEM applications.
• Rated lifting capacity from 7000 lbs. to 10000 lbs.
• Safety Factor: 5:1.
• Thread engagement 1 1/2 times screw diameter.
• Use high tensile alloy screw equivalent to Grade 8.

Finish: Black Oxide|Cadmium Plated

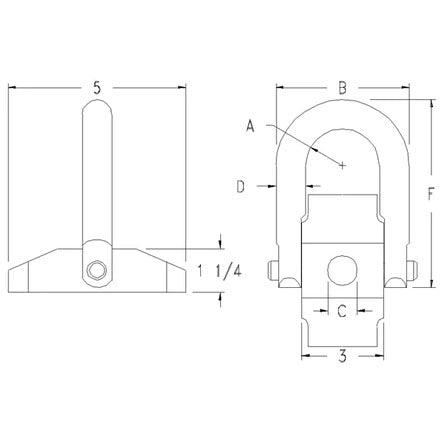

Part Number	Rated Load	Thread Size	A	B	C	D	F	Torque	Weight
AK44415	8,000 lbs	7/8" - 9	1.40 in	4 13/16 in	7/8 in	1 in	6 1/2 in	160 ft-lbs	6.7 lbs
