Brand: Actek

ACTEK AK44423 10,000 LBS PIVOT LIFTING PLATE SCREW SIZE: 1 1/8-7 200% PROOF-LOAD TESTED W/SERIAL #

SKU: AK-AK44423
MPN: AK44423

  • $235.35
    Unit price per
  • Save $17.51
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the unparalleled durability and strength of the ACTEK AK44423 Pivot Lifting Plate, meticulously crafted and tested to withstand up to 10,000 lbs of load with a remarkable 200% proof-load test. Made with high-quality alloy steel and finished with a sleek black oxide coating, this lifting plate is the perfect combination of functionality and style. With a thread size of 1 1/8"-7 and an impressive pivot angle of 180°, this plate is ready to take on any heavy lifting task with a safety factor of 5:1. Trust in the reliability of ACTEK Manufacturing & Engineering, proudly providing top-of-the-line products like the AK44423 Pivot Lifting Plate.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

ACTEK AK44423 10,000 LBS PIVOT LIFTING PLATE SCREW SIZE: 1 1/8-7 200% PROOF-LOAD TESTED W/SERIAL #



High Strength Alloy screws must be used.
Both UNC and Coil available.
  • Large Bail Pivots 180°.
  • Rugged tapered plate minimizes shear force on high strength alloy screw.
  • Base plate can be welded into position thus eliminating use of screws.
  • Alloy Steel
  • Ideal for some OEM applications.
  • Rated lifting capacity from 7000 lbs. to 10000 lbs.
  • Safety Factor : 5:1.
  • Thread engagement 1 1/2 times screw diameter.
  • Use high tensile alloy screw equivalent to Grade 8.

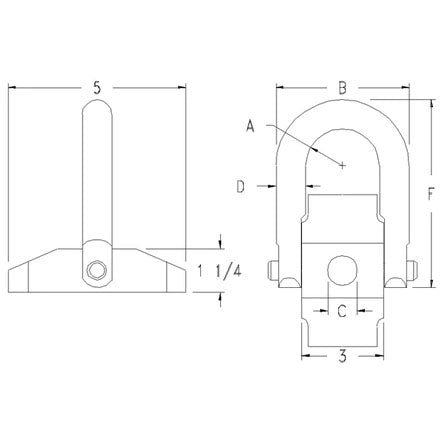

Part Number Rated Load Thread Size A B C D F Torque Weight
44423 10,000 lbs 1 1/8" - 7 1.40 in 4 13/16 in 1 1/8 in 1 in 6 1/2 in 230 ft-lbs 6.7 lbs
