Brand: Actek
ACTEK AK44803 15,000 LBS SWIVEL ROUND PLATE HOIST RING SCREW SIZE: 1-1/2 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK44803
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the unbeatable strength and reliability of the ACTEK AK44803 15,000 LBS SWIVEL ROUND PLATE HOIST RING, featuring a screw size of 1"-1/2 and 200% proof-load testing. With a 360° swivel angle and 180° pivot angle, this standard round plate hoist ring is perfect for heavy-duty lifting tasks. Trust in the power of 800 ft-lbs of torque and a 5:1 safety factor, all in a compact and lightweight design made from durable alloy steel. Don't settle for less when you can have the best with ACTEK. Order yours now!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK44803 15,000 LBS SWIVEL ROUND PLATE HOIST RING SCREW SIZE: 1-1/2 200% PROOF-LOAD TESTED W/SERIAL #
Both UNC and Coil available.
- Swivel 360° and pivots 180°.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Alloy Steel
- Magnetic Particle Inspected.
- Rated load capacities from 2500 lbs. to 20000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
- Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

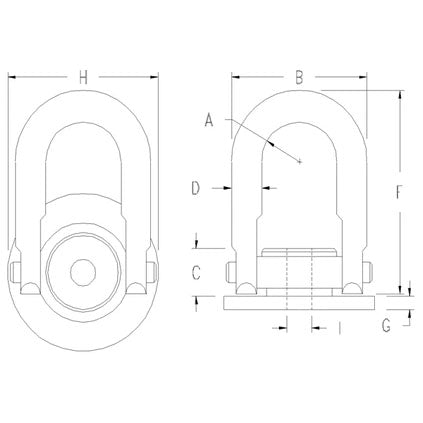

Part Number | Rated Load | A | B | C | D | F | G | H | Thread or Hole (I) | Torque | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|
44803 | 15,000 lbs | 1.75 in | 6 in | 1 7/8 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in | 1 1/2 in | 800 ft-lbs | 17 lbs |
