Brand: Actek

ACTEK AK44930 1,900 KGS METRIC ROUND BASE HOIST RING 3/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #

SKU: AK-AK44930
MPN: AK44930

$174.19
Unit price per
Save $12.94

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the unparalleled strength and reliability of the ACTEK AK44930 1,900 KGS METRIC ROUND BASE HOIST RING! With a 3/4 U bar, M16 thread/hole, and 200% proof-load testing, this hoist ring has been meticulously engineered and tested to ensure ultimate durability and safety. Made with high-quality alloy steel and finished with black oxide, it is the perfect addition to your lifting equipment. Plus, with a 360° swivel angle and 180° pivot angle, it provides unparalleled flexibility for all your lifting needs. Don't settle for less - trust in the passion and expertise of Actek Manufacturing & Engineering. Part Number: 44930. Thread info: M16 thread/hole.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK44930 1,900 KGS METRIC ROUND BASE HOIST RING 3/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #

Manufacturer: Actek Manufacturing & Engineering

Part Number: 44930

Description: Metric Round Plate Hoist Ring

Rated Load: 1,900 kg

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Torque: 80 Nm

Weight: 3.5 lbs

Material: Alloy Steel

Finish: Black Oxide|Cadmium Plated

High Strength Alloy screws must be used.
Both UNC and Coil available.

Swivel 360° and pivots 180°.
Direct mounting.
Wide round base helps distribute shear loads.
Alloy Steel
Magnetic Particle Inspected.
Rated load capacities from 2500 lbs. to 20000 lbs.
Many OEM applications.
Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

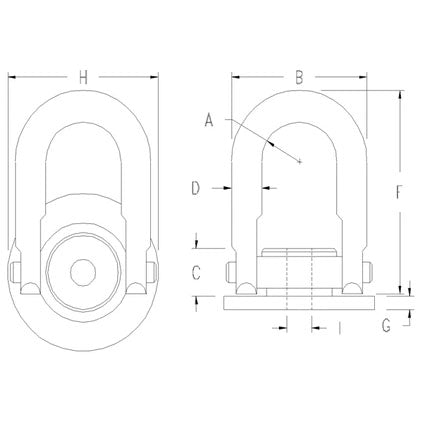

Part Number	Rated Load	A	B	C	D	F	G	H	Thread or Hole (I)	Torque	Weight
44930	1,900 kg	0.88 in	3 1/4 in	1 7/64 in	3/4 in	6 3/4 in	1/4 in	3 1/2 in	M16	80 Nm	3.5 lbs
