Brand: Actek

ACTEK AK57116 5,000 LBS COIL FORGED HOIST RING 3/4-4-1/2 COIL THREAD E=10 200% PROOF LOAD TESTED W/SERIAL #

SKU: AK-AK57116
MPN: AK57116

$129.11
Unit price per
Save $9.60

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the ACTEK AK57116 5,000 LBS COIL FORGED HOIST RING 3/4-4-1/2 COIL THREAD E=10 200% PROOF LOAD TESTED W/SERIAL # - a product designed by Actek Manufacturing & Engineering that is sure to leave you in awe. This amazing hoist ring features a forged swivel design, rated load of 5,000 lbs and a thread size of 3/4"-4-1/2, ensuring ultimate strength and durability. The thread length of 10.00 inches and torque of 100 ft-lbs make it a top choice for heavy-duty lifting. Crafted with high-quality alloy steel, it weighs only 4.65 lbs and offers a swivel angle of 360° and a pivot angle of 180°. With a safety factor of 5:1, you can trust in its reliability and performance. Don't miss out

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK57116 5,000 LBS COIL FORGED HOIST RING 3/4-4-1/2 COIL THREAD E=10 200% PROOF LOAD TESTED W/SERIAL #

Manufacturer: Actek Manufacturing & Engineering

Part Number: 57116

Description: Forged Swivel Hoist Ring Coil Thread

Rated Load: 5,000 lbs

Thread Size: 3/4" - 4 1/2

Thread Length: 10.00 in

Torque: 100 ft-lbs

Material: Alloy Steel

Weight: 4.65 lbs

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Finish: Cadmium|Electroless Nickel|Galvanized|Phosphate

Swivels 360° - Pivots 180°
Material : Alloy Steel
Finish : Phosphate Per DOD-P-16232F (Cadmium, Electroless Nickel, & Galvanized available)
Safety Factor : 5:1
Magnetic Particle Inspected
Certified Heat Treatment

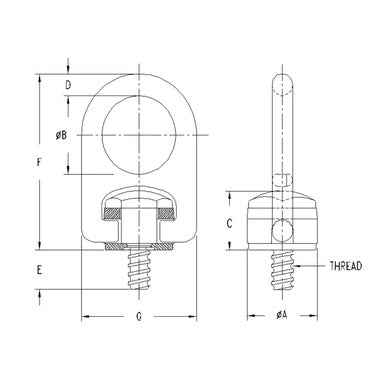

Part Number	Rated Load	Thread Size	Thread Length	A	B	C	D	F	G	Torque	Weight
57116	5,000 lbs	3/4" - 4 1/2	10.00 in	2.10 in	2.40 in	1.97 in	0.75 in	5.60 in	4.05 in	100 ft-lbs	4.65 lbs
