Brand: Actek

ACTEK AK57132 10,000 LBS COIL FORGED HOIST RING 1-3-1/2 COIL THREAD E=3 200% PROOF LOAD TESTED W/SERIAL #

SKU: AK-AK57132
MPN: AK57132

$201.76
Unit price per
Save $14.97

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the unbeatable strength of the ACTEK AK57132 10,000 LBS COIL FORGED HOIST RING 1-3-1/2 COIL THREAD E=3 200% PROOF LOAD TESTED W/SERIAL #. Made with precision by Actek Manufacturing & Engineering, this forged swivel hoist ring boasts a rated load of 10,000 lbs and a safety factor of 5:1. The 1"-3-1/2 coil thread, 3 inch thread length provides ultimate security, while the 360° swivel angle and 180° pivot angle allow for versatile use. Trust in the durable, 9.30 lbs alloy steel construction and a torque of 230 ft-lbs. Don't wait - elevate your lifting game with this top-of-the-line hoist ring!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK57132 10,000 LBS COIL FORGED HOIST RING 1-3-1/2 COIL THREAD E=3 200% PROOF LOAD TESTED W/SERIAL #

Manufacturer: Actek Manufacturing & Engineering

Part Number: 57132

Description: Forged Swivel Hoist Ring Coil Thread

Rated Load: 10,000 lbs

Thread Size: 1" - 3 1/2

Thread Length: 3.00 in

Torque: 230 ft-lbs

Material: Alloy Steel

Weight: 9.30 lbs

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Finish: Cadmium|Electroless Nickel|Galvanized|Phosphate

Swivels 360° - Pivots 180°
Material : Alloy Steel
Finish : Phosphate Per DOD-P-16232F (Cadmium, Electroless Nickel, & Galvanized available)
Safety Factor : 5:1
Magnetic Particle Inspected
Certified Heat Treatment

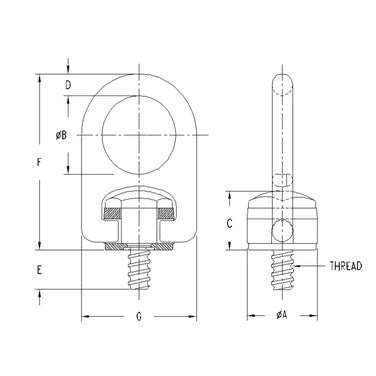

Part Number	Rated Load	Thread Size	Thread Length	A	B	C	D	F	G	Torque	Weight
57132	10,000 lbs	1" - 3 1/2	3.00 in	2.80 in	3.20 in	2.62 in	1.00 in	7.48 in	5.40 in	230 ft-lbs	9.30 lbs
