Brand: Actek

ACTEK AK57144 15,000 LBS COIL FORGED HOIST RING 1-1/4-3-1/2 COIL THREAD E=10 200% PROOF LOAD TESTED W/SERIAL #

SKU: AK-AK57144
MPN: AK57144

  • $332.20
    Unit price per
  • Save $24.68
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the power and reliability of the ACTEK AK57144 15,000 LBS COIL FORGED HOIST RING, now with enhanced thread capabilities! Engineered by Actek Manufacturing & Engineering, this top-performing swivel hoist ring with coil thread is built to withstand heavy loads and intense conditions. With a thread size of 1-1/4"-3-1/2 and a thread length of 10.00 in, this hoist ring is truly a force to be reckoned with. Rest assured with its 200% proof load testing and sturdy alloy steel material, making it the perfect choice for all your lifting needs. Complete with a 360° swivel angle and 180° pivot angle, this hoist ring offers ultimate flexibility and safety with a 5:1 safety factor. Don't miss out on the opportunity to elevate your lifting game - grab your ACTEK AK57144 today and experience the difference!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

ACTEK AK57144 15,000 LBS COIL FORGED HOIST RING 1-1/4-3-1/2 COIL THREAD E=10 200% PROOF LOAD TESTED W/SERIAL #





  • Swivels 360° - Pivots 180°
  • Material : Alloy Steel
  • Finish : Phosphate Per DOD-P-16232F (Cadmium, Electroless Nickel, & Galvanized available)
  • Safety Factor : 5:1
  • Magnetic Particle Inspected
  • Certified Heat Treatment

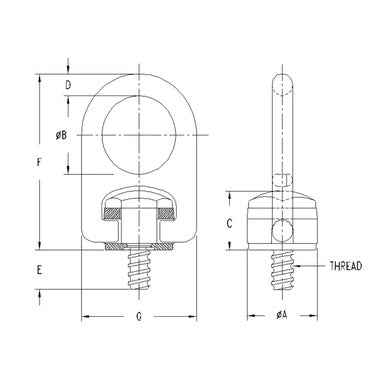

Part Number Rated Load Thread Size Thread Length A B C D F G Torque Weight
57144 15,000 lbs 1 1/4" - 3 1/2 10.00 in 3.50 in 4.00 in 3.28 in 1.25 in 9.35 in 6.75 in 470 ft-lbs 19.90 lbs
