Brand: Actek

ACTEK AK57156 24,000 LBS COIL FORGED HOIST RING 1-1/2-3-1/2 COIL THREAD E=24 200% PROOF LOAD TESTED W/SERIAL #

SKU: AK-AK57156
MPN: AK57156

$457.28
Unit price per
Save $33.97

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the power and reliability of the ACTEK AK57156 24,000 LBS COIL FORGED HOIST RING 1-1/2"-3-1/2 COIL THREAD, 24 inch thread length, the perfect addition to your heavy-duty lifting arsenal. Expertly crafted and tested with a 200% proof load, this swivel hoist ring is made from high-quality alloy steel and can handle a rated load of 24,000 lbs. With a swivel angle of 360° and a pivot angle of 180°, this hoist ring provides ultimate flexibility and safety. Don't miss out on this must-have product from Actek Manufacturing & Engineering, with serial number included.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK57156 24,000 LBS COIL FORGED HOIST RING 1-1/2-3-1/2 COIL THREAD E=24 200% PROOF LOAD TESTED W/SERIAL #

Manufacturer: Actek Manufacturing & Engineering

Part Number: 57156

Description: Forged Swivel Hoist Ring Coil Thread

Rated Load: 24,000 lbs

Thread Size: 1 1/2" - 3 1/2

Thread Length: 24.00 in

Torque: 800 ft-lbs

Material: Alloy Steel

Weight: 27.25 lbs

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Finish: Cadmium|Electroless Nickel|Galvanized|Phosphate

Swivels 360° - Pivots 180°
Material : Alloy Steel
Finish : Phosphate Per DOD-P-16232F (Cadmium, Electroless Nickel, & Galvanized available)
Safety Factor : 5:1
Magnetic Particle Inspected
Certified Heat Treatment

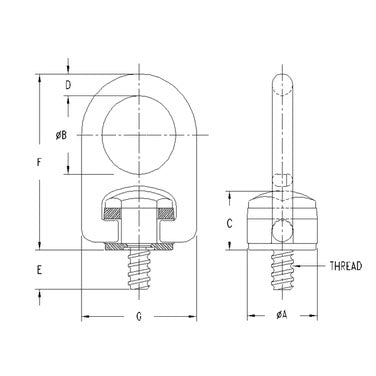

Part Number	Rated Load	Thread Size	Thread Length	A	B	C	D	F	G	Torque	Weight
57156	24,000 lbs	1 1/2" - 3 1/2	24.00 in	3.50 in	4.00 in	3.28 in	1.25 in	9.35 in	6.75 in	800 ft-lbs	27.25 lbs
