Brand: FREER NAAMS
NAAMS Locating Pin APQ184RT
SKU: FN-APQ184RT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Freer NAAMS locating pin APQ184RT.All of our NAAMS Standard locating pins with TiN coating are only made from A2 steel and hardened to 58-62 hRC
Titanium nitride added is added to NAAMS codes ending with T.
*M2 coated pins available, per quote only*
Full Description

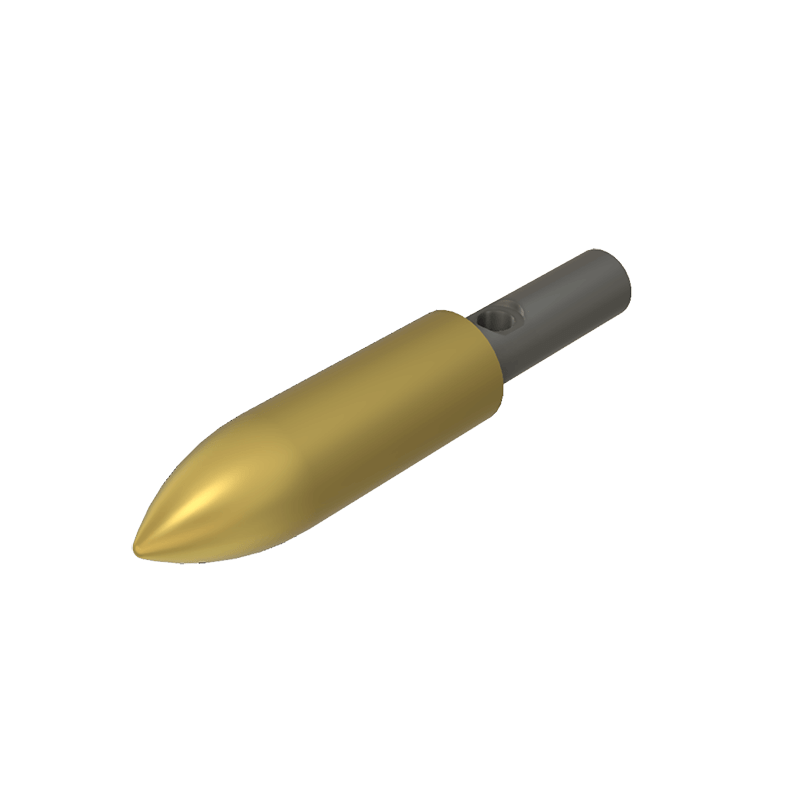

FREER NAAMS APQ184RT

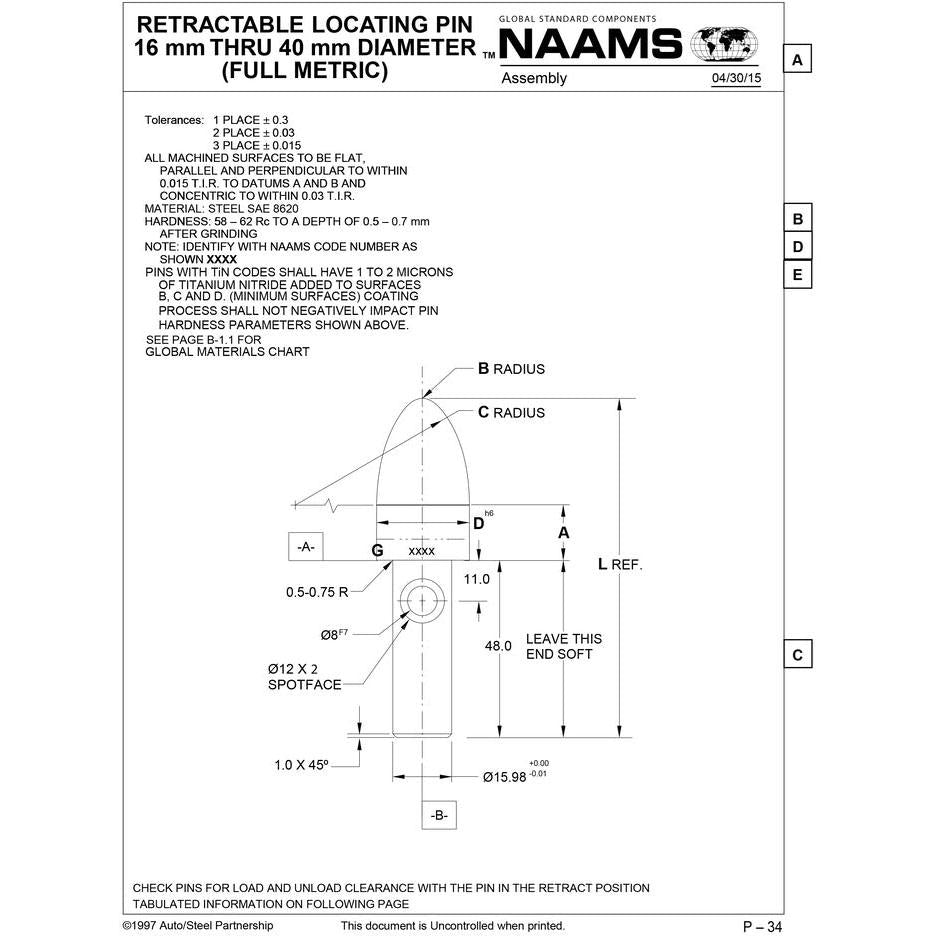

Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*
Titanium Nitride Added

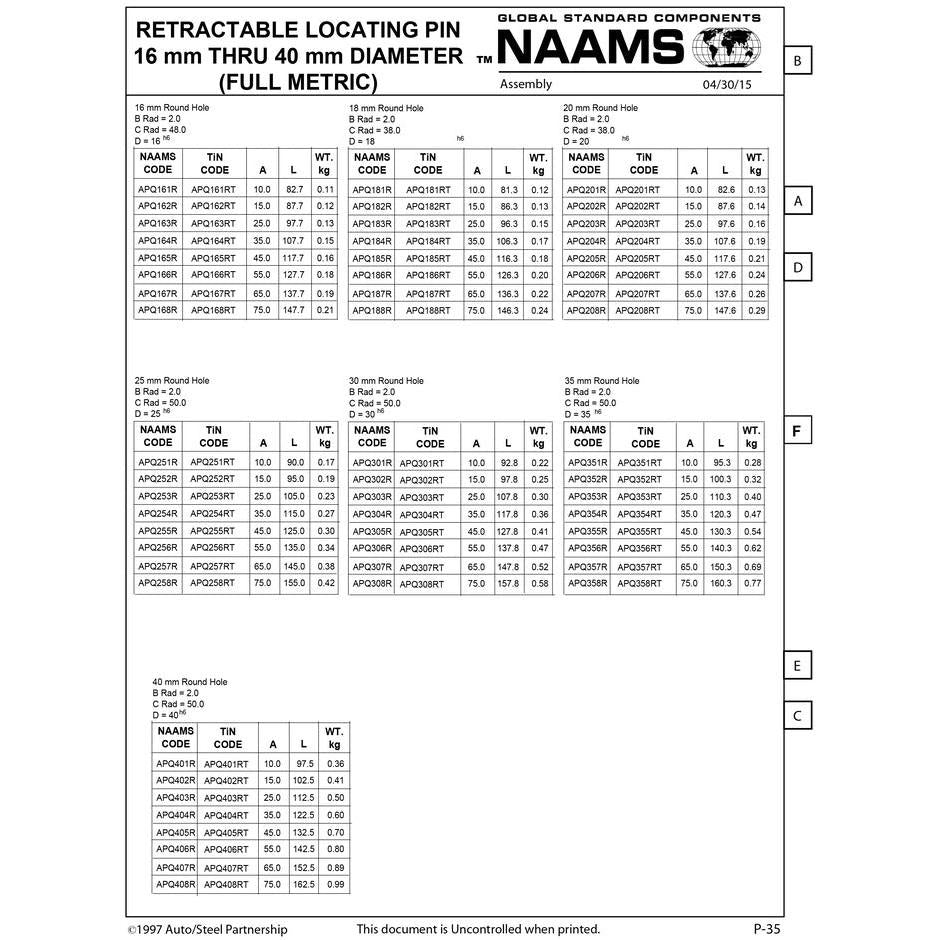

A: 35mm
L: 106.3mm
WT. kg: 0.17
