BEDDING SUPPORTS - 23220.0085

Brand: HALDER

BEDDING SUPPORTS - 23220.0085

SKU: EH-23220.0085
MPN: 23220.0085

  • $409.25
    Unit price per
  • Save $21.32
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Bedding Supports | b3=8.5 mm / l1=75 mm | 23220.0085
Halder 23220.0085 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

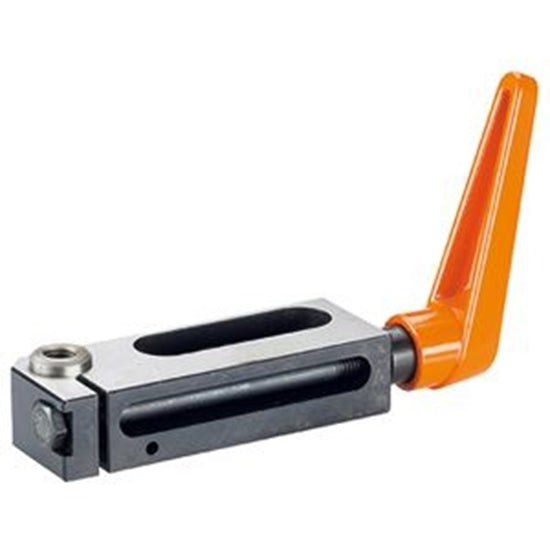

The bedding support is used to support additional clamping points on components.

The benefits of the bedding support are:

  • provides additional support without distortion
  • helps to eliminate tool vibration
  • compact, low construction
  • supports ribs, beads and shackles to reinforce clamped components
  • distortion-free support of raw parts
  • easy handling - clamping outside of workpiece is also possible by means of adjustable clamping levers.

Material

Handle

  • Zinc die-cast

Clamp

  • Steel, case-hardened, blackened, ground

Operation

  • By releasing the clamping lever the support bolt contacts the workpiece with a slight spring load.
  • By clamping the lever the support bolt will be locked in position.
  • After taking out the workpiece, release the clamping lever; then reset support bolt and clamp via lever.

The supporting height can be adjusted by screwing threaded pins or supports into the female thread of the support bolt.
