Brand: INDUSTRIAL MAGNETICS

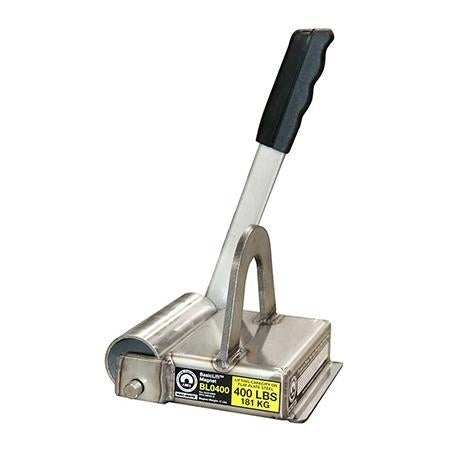

Industrial Magnetics MAG-MATE ® BasicLift™ Lift Magnet 400 lb lift Capacity, 2:1 Design Factor BL0400
SKU: IM-BL0400
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE® BasicLift Lift Magnet 400 lb lift Capacity, 2:1 Design Factor BL0400.The BasicLift is a powerful, no-frills permanent ceramic lift magnet perfect for basicflat steel lifting, angle iron, square tubes, etc. Featuring a lightweight and durableStainless Steel design, the BasicLift has a full-width cam to release the magnetfrom the steel surface and a tall lift lug for easy use with crane hooks and slings.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® BasicLift Lift Magnet 400 lb lift Capacity, 2:1 Design Factor BL0400
BASICLIFT MAGNETS
The BasicLift is a powerful, no-frills permanent ceramic lift magnet perfect for basic
flat steel lifting, angle iron, square tubes, etc. Featuring a lightweight and durable
Stainless Steel design, the BasicLift has a full-width cam to release the magnet
from the steel surface and a tall lift lug for easy use with crane hooks and slings.
The BasicLift offers a good value for your dollar with strong lifting capacity and
basic lifting features.
Features
‚¬¢ Lightweight Design
‚¬¢ Durable Stainless Steel Casing
‚¬¢ Large Lift Lug
‚¬¢ Full Width Cam Release
‚¬¢ Heat resistant up to 300°F (148°C)
‚¬¢ 2:1 Design Factor
| WLL | Overall | Magnet | Bail Opening | ||||||||||
| Model No. | LBS KG | Height (in) | Width (in) | Length (in) | Handle Length (in) | Height (in) | Width (in) | Length (in) | No. of Poles | Thickness (in) | Height (in) | Width (in) | Weight (lbs) |
| BL0400 | 400 181 | 5-1/2 | 5-5/8 | 7-1/2 | 12 | 1-5/8 | 4-1/2 | 3 | 4 | 1/4 | 2-3/4 | 2-3/4 | 11 |
| BL1000 | 1000 453 | 5-1/2 | 5-5/8 | 11 | 12 | 1-5/8 | 4-1/2 | 6-1/2 | 8 | 1/4 | 2-3/4 | 2-3/4 | 17 |
| BL1500 | 1500 680 | 5-1/2 | 5-5/8 | 14-1/2 | 12 | 1-5/8 | 4-1/2 | 10 | 12 | 1/4 | 2-3/4 | 2-3/4 | 24 |
| Working Load Limit (WLL) in lbs (kg) & *Maximum Sheet Length Due To Sag For Material Thickness For Single Magnet Use | |||||||||||||
| Model No. | 3/16" (6' Length) | 1/4" (6' Length) | 3/8" (8' Length) | 1/2" (8' Length) | 3/4" (8' Length) | 1" (10' Length) | 3" (10' Length) | ||||||
| BL0400 | 375 (170) | 400 (181) | 400 (181) | 400 (181) | 400 (181) | 400 (181) | 400 (181) | ||||||
