Brand: DESTACO

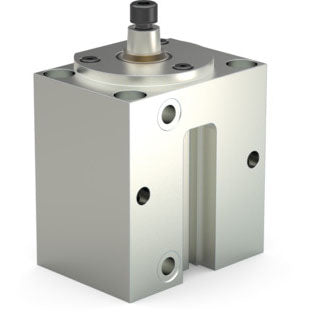

DESTACO 89B20-010-2L BLOCK STYLE PNEUMATIC SWING CYLINDER-20MM BORE LH SWING
SKU: DE-STA-CO-89B20-010-2L
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This top-of-the-line DESTACO 89B20-010-2L BLOCK STYLE PNEUMATIC SWING CYLINDER-20MM BORE LH SWING is a must-have for any workshop or assembly line. Its magnetic ring piston allows for precise position sensing, while the 360-degree radial positioning of the clamping arm is ideal for a wide range of applications. Plus, its lightweight yet durable design can withstand millions of cycles. With a maximum operating pressure of 8 bar (120 psi), this cylinder replaces the 89B20-010-1L model and boasts a 0.790 inch stroke and 0.79 inch bore, delivering a powerful clamping force of 18 lbf. at 5 bar (72 psi). Choose from side or top mount and M5 air port size for your convenience.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 89B20-010-2L BLOCK STYLE PNEUMATIC SWING CYLINDER-20MM BORE LH SWING
Product Details
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Magnetic ring piston for position sensing. The clamping arm can be positioned 360 degrees radially. Accommodates T-slot (8EA-109-1) sensors.
- Lightweight and robust, designed for several million cycles
- Clamping arms sold separately
- Maximum operating pressure 8 bar (120 psi)
- Replaces 89B20-010-1L
Stroke (in) | 0.790 |
Cylinder Bore (in) | 0.79 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 18 |
Mount | Block style - side or top mount |
Replacement Seal Kit | 89B/E20-2-00 |
Swing Direction | LH |
Air Port size | M5 |
Air Consumption (per double stroke at 7 psi) (in³) | 0.003 |
Stroke during rotation (in) | 0.39 |
Vertical clamp stroke (in) | 0.39 |
Sensor Ready | Yes |
Weight (lb) | 1.46 |
Product Series Description | Swing Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | pneumatic swing clamps |
