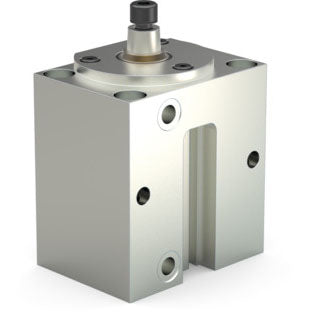

DESTACO 89B40-010-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-40MM BORE RH SWING

Brand: DESTACO

DESTACO 89B40-010-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-40MM BORE RH SWING

SKU: DE-STA-CO-89B40-010-2R
MPN: 89B40-010-2R

  • $534.39
    Unit price per
  • Save $34.82
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Featuring the DESTACO 89B40-010-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-40MM BORE RH SWING - perfect for welding and assembly! This reliable and robust design boasts a magnetic ring piston for precise position sensing, and its clamping arm can be easily positioned 360 degrees. Able to accommodate T-slot sensors, this cylinder is built to withstand millions of cycles and offers a maximum operating pressure of 8 bar. Don't miss out on this top-rated replacement for the 89B40-010-1R, with a stroke of 0.940 inches, cylinder bore of 1.57 inches, and clamping force of 85 lbf. The air port size is G-1/8. Get yours now for superior performance and reliable results!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 89B40-010-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-40MM BORE RH SWING

DESTACO 89B40-010-2R PRODUCT DETAILS

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Magnetic ring piston for position sensing. The clamping arm can be positioned 360 degrees radially. Accommodates T-slot (8EA-109-1) sensors.

  • Lightweight and robust, designed for several million cycles
  • Clamping arms sold separately
  • Maximum operating pressure 8 bar (120 psi)
  • Replaces 89B40-010-1R
Stroke (in) 0.940
Cylinder Bore (in) 1.57
Clamping Force @ 5Bar[72Psi] (lbf.) 85
Mount Block style - side or top mount
Replacement Seal Kit 89B/E40-2-00
Swing Direction RH
Air Port size G-1/8
Air Consumption (per double stroke at 7 psi) (in³) 0.014
Stroke during rotation (in) 0.55
Vertical clamp stroke (in) 0.39
Sensor Ready Yes
Weight (lb) 3.17
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
