Brand: DESTACO

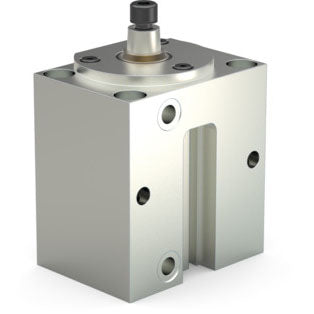

DESTACO 89B63-008-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-63MM BORE RH SWING
SKU: DE-STA-CO-89B63-008-2R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 89B63-008-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-63MM BORE RH SWING is an essential product for various applications, such as welding and assembly. Using a magnetic ring piston for position sensing, this durable design allows for 360 degree radial positioning of the clamping arm. It is compatible with T-slot (8EA-109-1) sensors and can withstand several million cycles. This lightweight and robust cylinder can operate at a maximum pressure of 8 bar (120 psi) and is a direct replacement for the 89B63-010-1R model. With a stroke of 1.020 inches and a cylinder bore of 2.48 inches, it exerts a clamping force of 247 lbs. @ 5 bar (72 psi). The block style mount can be positioned on the side or top.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 89B63-008-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-63MM BORE RH SWING
Product Details
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Magnetic ring piston for position sensing. The clamping arm can be positioned 360 degrees radially. Accommodates T-slot (8EA-109-1) sensors.
- Lightweight and robust, designed for several million cycles
- Clamping arms sold separately
- Maximum operating pressure 8 bar (120 psi)
- Replaces 89B63-010-1R
Stroke (in) | 1.020 |
Cylinder Bore (in) | 2.48 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 247 |
Mount | Block style - side or top mount |
Replacement Seal Kit | 89B/E63-2-00 |
Swing Direction | RH |
Air Port size | G-1/4 |
Air Consumption (per double stroke at 7 psi) (in³) | 0.038 |
Stroke during rotation (in) | 0.71 |
Vertical clamp stroke (in) | 0.32 |
Sensor Ready | Yes |
Weight (lb) | 6.39 |
Product Series Description | Swing Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | pneumatic swing clamps |
