Brand: Schunk

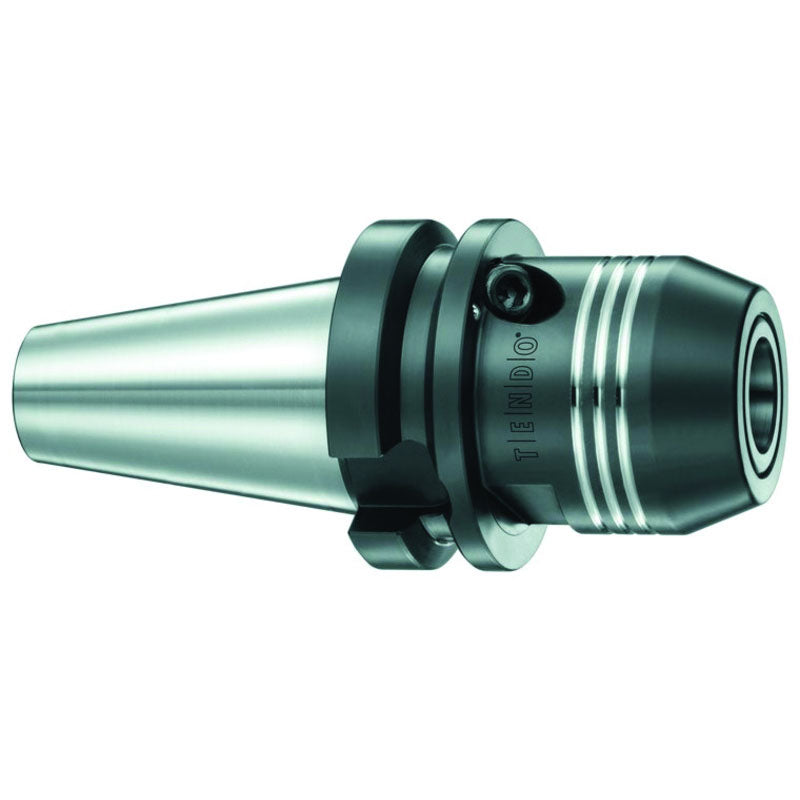

Schunk HF80206446 BT50 20MM SCHUNK TENDO-EC Hydraulic Holder

SKU: FTS-HF80206446
MPN: 206446

$601.62
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Schunk 206446 BT50 20MM SCHUNK TENDO-EC Hydraulic Holder

Full Description

Connection Diameter Machine Side (DCONMS)	BT50	Nose Diameter	1.940"
Body Length (LB)	83.5 mm	Tool Type	Milling Chucks
Connection Diameter Workpiece Side (DCONWS)	20 mm

• Maximum true running and repeat accuracy greater than 0.003 mm • Excellent vibration damping • Improved surface quality • Prevents chipping of tool cutting edge • Versatile clamping range thanks to intermediate sleeves • Accurate length presetting axially or radially • Easy handling - without peripheral equipment tools are changed within seconds • Precision-balanced as standard G 2.5 / 25000 1/min.
