Brand: HALDER

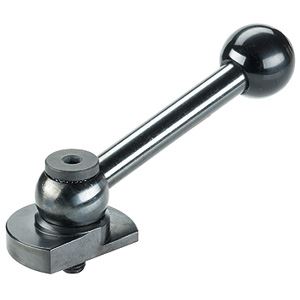

CLAMPING CATCHES - 22260.0351

SKU: EH-22260.0351
MPN: 22260.0351

$198.81
Unit price per
Save $10.36

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Clamping Catches/with clamping screw, pitch opposite to bearing surface | Stainless steel | 22260.0351
Halder 22260.0351 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Clamping catches have a round running taper surface and enable fast and safe clamping and releasing with a relatively large adjustment range and high tensioning force. Due to the small gradient angle of the taper surface, the clamping catch is self-locking.

Material

Body

Stainless steel 1.4305, nickel-plated

Screw

Stainless steel 1.4021, heat-treated, nickel-plated

Assembly

Fix with screw bolt M 10 (SW 6). Ensure a tightening torque of max. 40 Nm.

Operation

The screw bolt and the washer are adjustable. Once screwed in, the clamping catch can easily be turned to the desired position. For Art. No. 22260.0250 /Ã¡.0251 and 22260.0450 /Ã¡.0451, the serration helps to put the clamping lever to the preferred position.

Notes

Left turn type can be supplied on request.

Halder 22260.0351 Data Sheet
