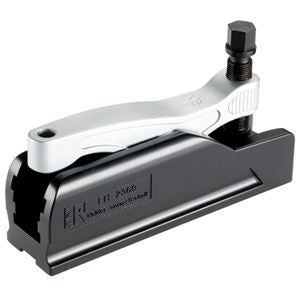

COMPACT CLAMPS - 23690.0016

Brand: HALDER

COMPACT CLAMPS - 23690.0016

SKU: EH-23690.0016
MPN: 23690.0016

  • $708.22
    Unit price per
  • Save $54.78
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Compact Clamps | d1=M16 | 23690.0016
Halder 23690.0016 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

The compact clamps are all purpose clamping elements. Due to the self-locking clamping lever application can either take place in horizontal or vertical position in both, machined and raw workpieces.

Features:

  • exact and position precise clamping
  • ease of operation
  • high clamping force at low tightening torques, abrasion-resistant due to clamping lever with bearings
  • continuous, large clamping area
  • clamping lever entirely retractable for hindrance-free exchange of workpieces
  • threaded clamping lever can be used with many clamping elements, e.g. ball-ended thrust screws (EHá22700. - EHá22720.), self-aligning pads (EHá22730./EHá22740.) etc.
  • large adjusting range at constant clamping force
  • continuous height adjustment by height adaptors 23690.0112/.0116
  • easy and flexible set up
  • corrosion-resistant
  • resistant to dirt and chips

Material

Body

  • Heat-treated steel, black coated

Clamping Levers

  • Heat-treated steel, tempered, silver coated

Assembly

Assembly and Set-Up:

  • Take out stop pin ISO 4762-M 6 x 10.
  • Move back and take out clamping lever.
  • Tightening by 2 screws with internal hexagon (included in supply volume).
  • Place clamping lever in sliding rail and then insert.
  • Tighten stop pin ISO 4762 - M 6 x 10.

Operation

Clamping Process:

  • Slide clamping lever to clamping position.
  • Clamping is made via a hexagon collar screw.
  • Releasing is done in reverse order.

Halder 23690.0016 Data Sheet
