Brand: DESTACO

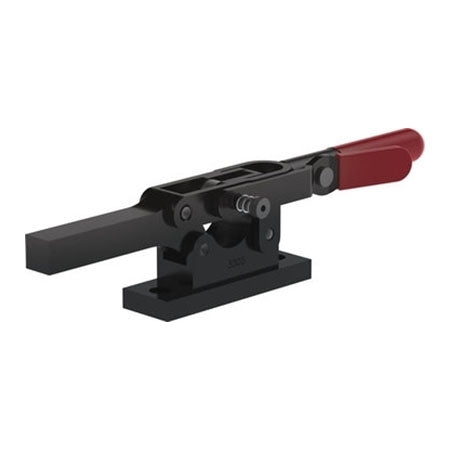

DESTACO 5305-R - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN CLAMPS

SKU: DE-STA-CO-5305-R
MPN: 5305-R

$94.95
Unit price per
Save $6.18

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Presenting the DESTACO 5305-R - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN TOGGLE CLAMPS! These powerful clamps are built to last with their sturdy construction. The clamping bars can even be customized to suit your specific needs. Made with high strength forged alloy steel and hardened pivot pins and bushings, these clamps are capable of handling a maximum holding capacity of 2,670 N (or 600 lbsf). With an opening angle of 90 degrees and a height of 20.6 mm (or 0.810 in) under the clamp arm, these clamps are a reliable choice for any application. Plus, the sleek black oxide finish adds a touch of sophistication to your work. Trust the strength and durability of our standard steel toggle clamps!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 5305-R - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN CLAMPS

These low profile heavy duty feature robust construction for extended life and durability. Solid clamping bars may be modified to suit your application.

High strength forged alloy steel clamping arm
Hardened steel pivot pins and bushings for long life
Black oxide finish

Maximum Holding Capacity (N)	2,670
Maximum Holding Capacity (lbsf)	600
Opening Angle (deg)	90
Height Under Clamp Arm (mm)	20.6
Height Under Clamp Arm (in)	0.810
Clamp Bar Opening (+10°) (degrees)	90
Handle Opening (+10°)	69
Standard Material	Steel
Toggle Lock Plus	Yes
Accommodates Workpiece Variation	No
Base Mounting Style	Flange
Clamp Arm Style	Solid Bar
Handle	Horizontal
Service Environment	Harsh/Dirty
Application - Welding	Excellent/High
Application - Assembly	Excellent/High
Application - Checking Fixtures	Fair/Medium
Application - Machining	Poor/Low
Application - Wood-Working	Poor/Low
Application - Closures	Poor/Low
Application - Food Processing	Not Recommended
Duty Cycle	3
Product Type	Heavy Duty
Weight (kg)	0.49
Weight (lb)	1.08
Product Series Description	Horizontal Clamp
