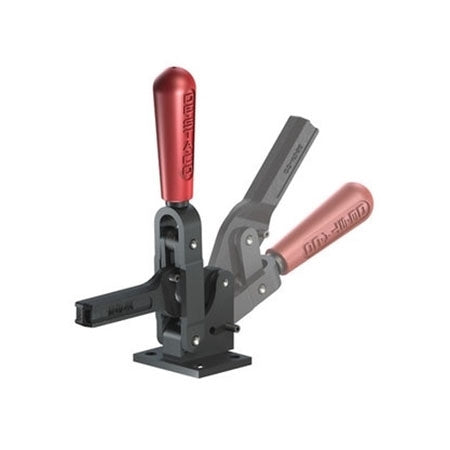

DESTACO 5915 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

Brand: DESTACO

DESTACO 5915 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

SKU: DE-STA-CO-5915
MPN: 5915

  • $119.29
    Unit price per
  • Save $9.23
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Enhance the productivity and longevity of your work with DESTACO 5915 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN TOGGLE CLAMPS. These clamps are constructed with durability in mind and can be easily modified to fit your specific needs. The high strength forged alloy steel clamping arm, along with the hardened steel pivot pins and bushings, ensure a long-lasting and reliable performance. Featuring a sleek black oxide finish, these clamps have a maximum holding capacity of 12,230 N (2,750 lbsf) and a convenient opening angle of 147 degrees. The compact design with a height of 69.3 mm (2.730 in) under the clamp arm and an opening angle of 74 degrees provides maximum efficiency. Crafted with high-strength forged steel, these toggle clamps are the perfect addition to any heavy-duty task.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 5915 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

These heavy-duty hold-down clamps feature robust construction that provides extended life and durability. Solid clamping bars may be modified to suit application requirements. Three sizes to choose from with multiple mounting options.

  • High strength forged alloy steel clamping arm
  • Hardened steel pivot pins and bushings for long life
  • Black oxide finish
Maximum Holding Capacity (N) 12,230
Maximum Holding Capacity (lbsf) 2,750
Opening Angle (deg) 147
Height Under Clamp Arm (mm) 69.3
Height Under Clamp Arm (in) 2.730
Clamp Bar Opening (+10°) (degrees) 147
Handle Opening (+10°) 74
Standard Material High-Strength Forged Steel
Toggle Lock Plus No
Accommodates Workpiece Variation No
Base Mounting Style Flange
Clamp Arm Style Solid Bar
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Fair/Medium
Application - Machining Poor/Low
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Heavy Duty
Weight (kg) 2.92
Weight (lb) 6.44
Product Series Description Vertical Clamp
