Brand: DESTACO

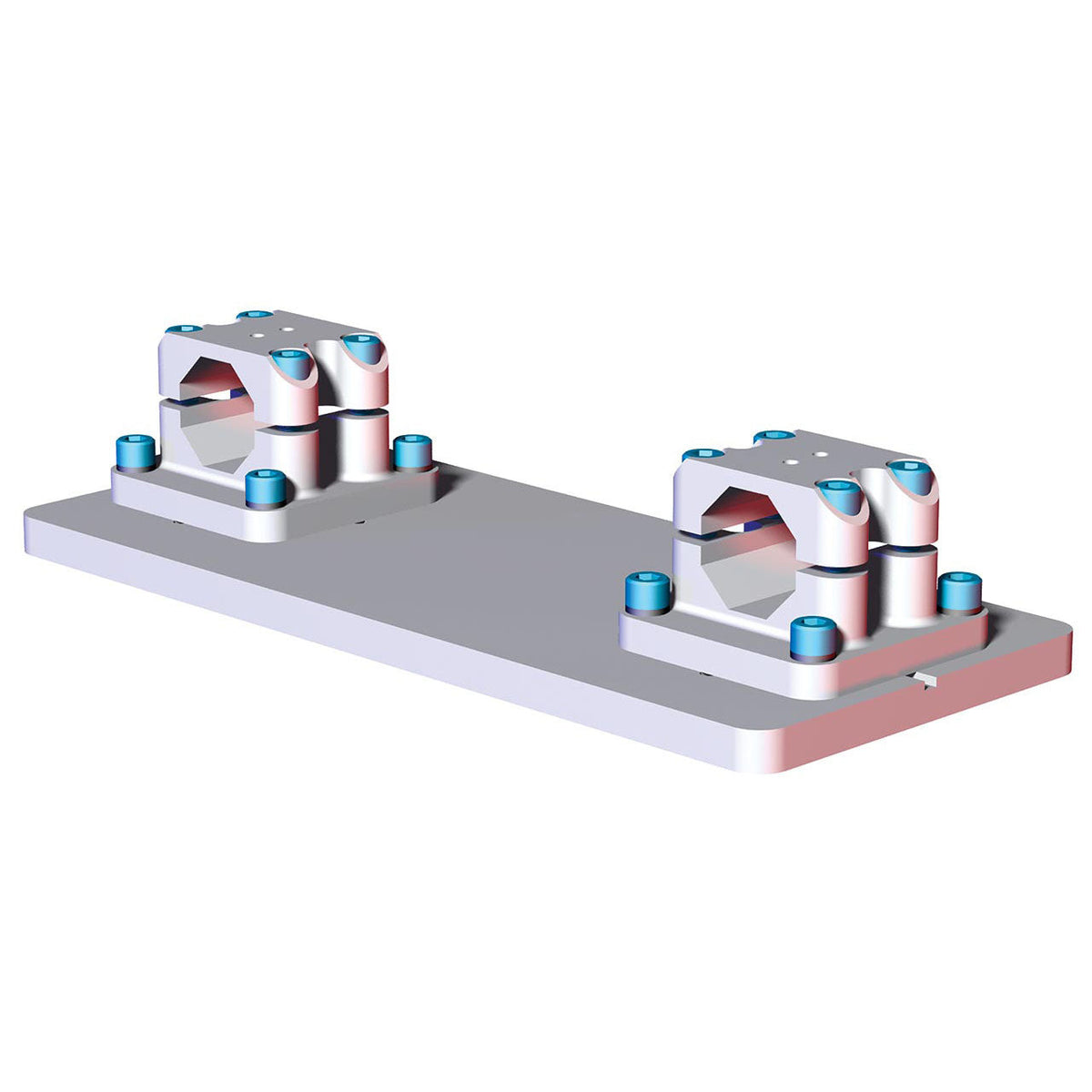

DESTACO BM1-45-DE-R08 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R08 - W/ INSULATION

SKU: DE-STA-CO-BM1-45-DE-R08
MPN: BM1-45-DE-R08

$1,289.85
Unit price per
Save $149.11

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Inspiringly discover the value of DESTACO's BM1-45-DE-R08 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R08 - W/ INSULATION, a high-performance automation, workholding, and containment solution. This assembly mounts two 45mm extrusion booms in parallel, with a robot interface bolt pattern R08 featuring a 160mm bolt circle. It also includes insulation and has a tube diameter of 45mm (1.77 inches), length of 406.4mm (16 inches), and width of 177.8mm (7 inches), all made from durable aluminum. With (8) 16mm thru holes and (2) 13mm dowel holes on 160mm and 125mm bolt circles respectively, this mid mount can handle a maximum static product load of 350Nm (258 ft lb). Upgrade your automation with this 45B size mid mount from DESTACO!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM1-45-DE-R08 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R08 - W/ INSULATION

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts two 45mm extrusion booms parallel with the two mounts.
Robot Interface Bolt Pattern R08: 160mm Bolt Circle, Includes Insulation

Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Length (mm)	406.4
Length (in)	16.000
Width (mm)	177.8
Width (in)	7.000
Material	Aluminum
Robot Interface Bolt Pattern	R08: 160mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm)	(8) 16 on 160mm BC
Robot Interface Dowel Holes (qty/size) (mm)	(2) 13 on 125mm BC
Maximum Static Product Load (Nm)	350
Maximum Static Product Load (ft lb)	258
Product Type	Mid Mount
Tube Size	45B
Weight (kg)	5.05
Weight (lb)	11.10
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
